WEAH D222 80W Speaker Frequency Division

 WEAH-D222 speaker frequency divider with cable box 2 frequency divider high and low 2 frequency divider sound quality improvement tool

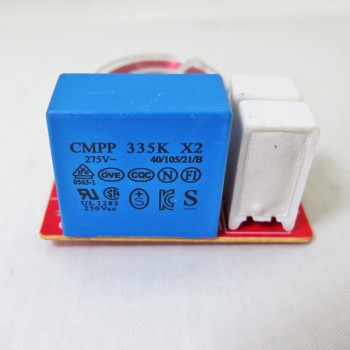

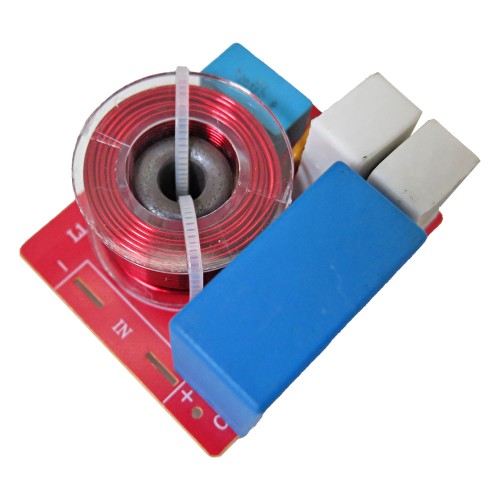

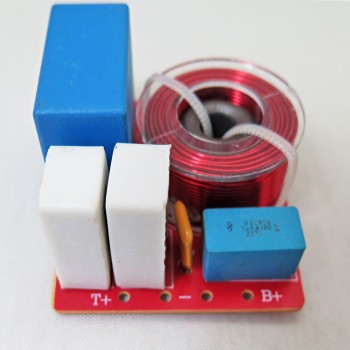

The treble is a 3.3uF blue 100V non-inductive capacitor, imported resistor and overcurrent protector. The bass is an oxygen-free copper core inductor with a cable box and banana socket connection point. The materials are exquisite and very easy to use. It is a rare small frequency crossover for fever and is worth a try.

The role of crossover in speakers:

The crossover is a circuit device inside the speaker that separates the sound signals of different frequency bands (treble, midrange, bass), amplifies them respectively, and then sends them to the speakers of the corresponding frequency bands for replay.

Speaker Frequency Division Application:

1. Typical speaker circuit design

Speaker Frequency Division Specifications:

1. Size: length 8.0 cm (with wire box size), 4.5 cm wide, 2.5 cm thick.
2. Recommended opening: 50mm
3. Power: 80W or less
4. Impedance: 5-8 Europe
5. Weight: 90 g
