5 PCS PAM8403 Dual Channel Stereo Digital Audio Amplifier Module With Volume Control [2x3W]

5 PCS PAM8403 Dual Channel Stereo Digital Audio Amplifier Module With Volume Control [2x3W]
  • Product Code:SQ1852
  • Availability: In Stock
  • $2.25
  •
  • Ex Tax:$2.25
This product has a minimum quantity of 4
+
-


Tags: Dual Channel, Audio Amplifier, Stereo Amplifier, Class D Amplifier, PAM8403

Description:

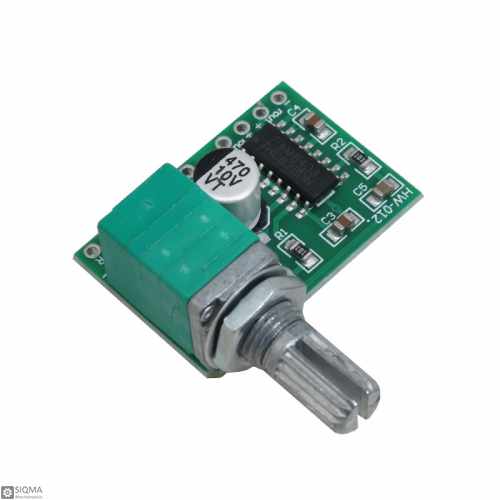

PAM8403 Dual Channel Stereo Digital Audio Amplifier Module is a 3W per channel, dual channel stereo, Class D digital amplifier, which is based on the PAM8403 integrated chip. It can reproduce high quality amplified sound, because  it has low THD+N and  Also low harmonic distortion. Modern audio amplifier has filterless architecture, so it's no need any low pass filter and  the speakers directly connect to the amplifier output, which result in low cost and size. It has a protection circuit which automatically cuts off the power when occurring a fault as over-temperature or short-circuit.
The module can be supplied by a power source with voltage from 2.5 V to 5.5 V DC, which make it suitable for Arduino sound projects, especially for MP3 and MP4 player projects. It is an ultra low cost but powerful and high-definition amplifier. The sound volume is quickly and easily adjusted with a built-in potentiometer, which capable to switch on and off and adjusting the output volume. It can apply in LCD Monitors, TV Projectors, Notebook Computers, Portable Speakers, Portable DVD Players, Game Machines, Cellular Phones, Speaker Phones, etc.

Features:
IC: PAM8403
FilterlessLow Quiescent Current and Low EMI
Superior Low Noise
Short Circuit Protection
Thermal Shutdown
Efficiency up to 90%
Input voltage: 5V
Output Power: 2x3W (at 4Ω Load)
Class Type: D
Output Impedance: 4Ω, 8Ω
Size: 35.5mm x 29.5mm

Package Include:
5 x PAM8403 Audio Amplifier with Volume Control

Audio Module Features
Amplifier Type Stereo
Class Type D
Output Impedance 4Ω , 8Ω
Efficiency 90%
Electrical Parameters
Input Voltage 5V
Output Power 2x3W (at 4Ω Load)
Board Parameters
Main Chip PAM8403
Physical Parameters
Size 35.5mm x 29.5mm
