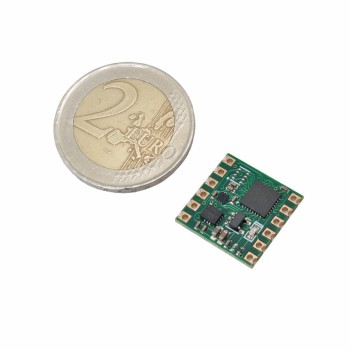

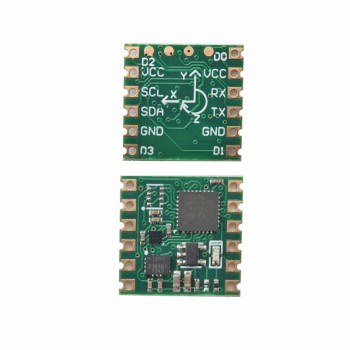

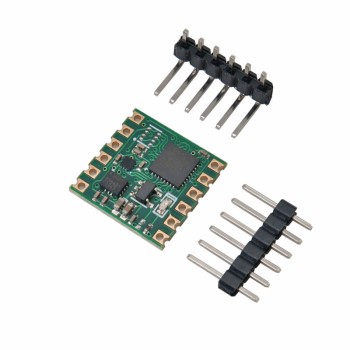

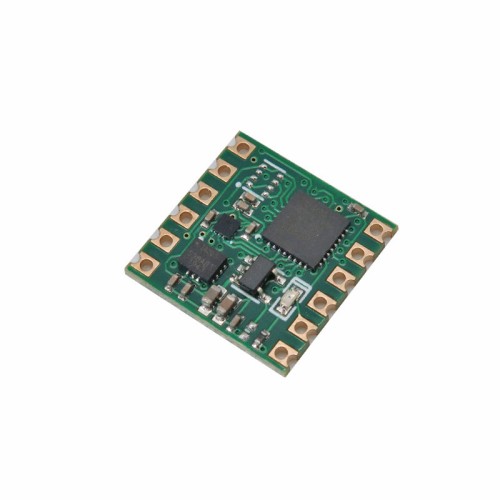

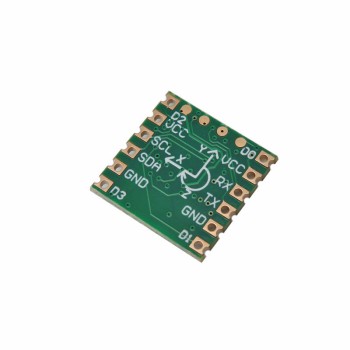

JY61P Model MPU6050 Six-Axis Gyroscope Module

This MPU6050 Six-Axis Gyroscope Module is based on the MPU6050 and features a Three-Axis Accelerometer Sensor and a Three-Axis MEMS Gyroscope. The module has a 12-bit analog-to-digital converter and can measure the X, Y, and Z axes simultaneously. The JY61P Gyroscope Module utilizes a digital processor to provide four output ranges, ensuring high accuracy in both slow and fast movements. This allows users to adjust the measurement range based on acceleration or speed. The Six-Axis Gyroscope provides four selectable ranges: ±250, ±500, ±1000, and ±2000 degrees per second, while the accelerometer section offers four options: ±2g, ±4g, ±8g, and ±16g.

Applications of the MPU6050 Gyroscope Module

1. Motion sensing systems
2. Smartphones
3. Portable carrying equipment
4. Augmented reality

Specifications of the MPU6050 Gyroscope Module

1. Model: JY-61
2. Working Voltage: 3.5 ~ 5 V
3. Working Current: Max 25mA
4. Interface: UART, I2C
5. Frequency: Max 100 Hz
6. Size: 15x15x2 mm
7. Weight: 1g

Documents:

MPU6050 Gyroscope Module Datasheet
