DK-60 Electromagnetic Lock [12V , 24V] [60Kg]

DK-60 Electromagnetic Lock [12V , 24V] [60Kg]
  • Product Code:SQ2187
  • Availability: In Stock
  • $5.80
  •
  • Ex Tax:$5.80

Available Options

This product has a minimum quantity of 2
+
-


Tags: Electromagnetic Lock, 12V Lock, 24V Lock, Magnetic Lock, maglock, emergency lock, electric lock

Description:

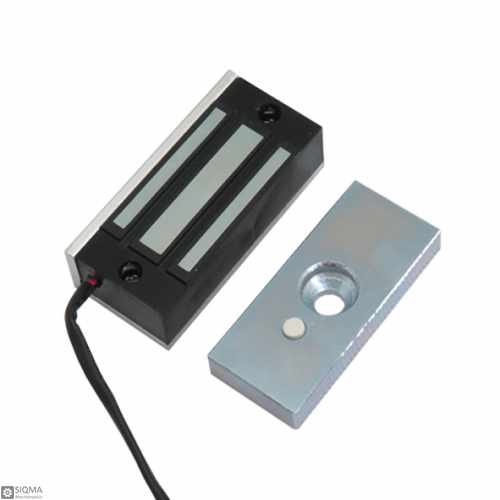

This product is a locking device which has a mechanism that uses a magnet for locking and unlocking. It also uses an electric current to produce the magnetic force. It is made of stainless steel material, and it can also be used outdoors. This device is designed to withstand a force of up to 60kg. The lock requires 12V or 24V DC power supply which is optional. The electromagnetic lock is suitable for use on emergency exit doors that have fire safety applications because this type of locks doesn't have complicated moving part, therefore they are less likely to fail than other types of electric locks.

Features:
Model: DK-60
Input voltage: 12V , 24V (Optional)
Working current: 120mA (at 12V) , 240mA (at24V)
Maximum pull force: 60kg
Case Material: Aluminum Alloy
Size: 80mm x 37mm x 24mm

Package Include:
1 x DK-60 12V Electromagnetic Lock

Electrical Parameters
Input Voltage 12V , 24V (Optional)
Working Current 120mA (at 12V) , 240mA (at24V)
Physical Parameters
Size 80mm x 37mm x 24mm
Material Aluminum Alloy
