TOF Laser Range finder Sensor

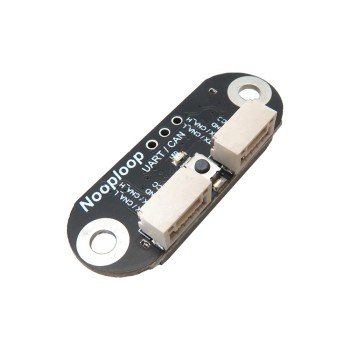

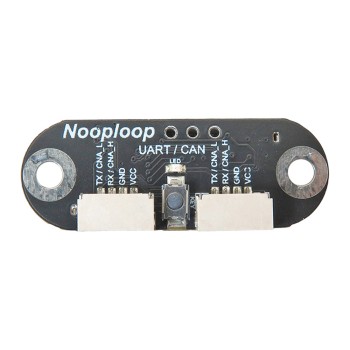

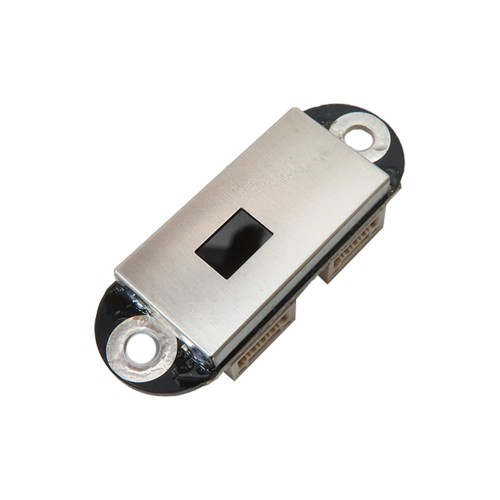

The TOF laser distance measurement module is an advanced module for high-precision distance measurement that utilizes Time Of Flight technology. This module has an internal MCU and an advanced measurement algorithm and is capable of measuring distances up to 5 meters with an accuracy of ±1.5 centimeters and a resolution of 1 millimeter, making it suitable for robotics and industrial projects. This module includes a TOF laser distance sensor and a control board with UART and CAN interfaces, which provides the possibility of connecting multiple modules in series, and each sensor can be configured with a unique ID.

The precise laser distance sensor module with a wavelength of 940 nanometers and a field of view of 15° to 27° provides stable performance in different environments and covers a short measurement range of 0.012 to 2.16 meters, a medium range of 0.012 to 3.6 meters, and a long range of 0.01 to 5 meters. The TOF laser sensor supports active and query data output and, along with the host computer assistant software, provides the possibility of sensor configuration, output waveform monitoring, data analysis, and firmware updates.

The TOF laser sensor is used for distance measurement in projects such as robot pathfinding, obstacle avoidance, drone altitude adjustment, 3D mapping, object detection, and volume measurement, and offers high flexibility in data collection. The TOF laser module with UART and CAN interfaces has the ability to connect up to 8 modules on the UART bus and up to 7 modules on the CAN bus, and each module can send its data simultaneously.

Ranging sensor module Applications:

1. - Precise distance measurement up to 5 meters
2. - Pathfinding and obstacle avoidance in robots
3. - Drone altitude adjustment and ceiling detection
4. - 3D mapping and environment modeling
5. - Volume measurement of objects and object detection
6. - Industrial automation and smart systems
7. - Indoor navigation and hand gesture recognition
8. - Application in autonomous vehicles and smart agriculture

Ranging sensor module Specifications:

1. - Sensor type: TOF laser
2. - Short measurement range: 0.012 to 2.16 meters
3. - Medium measurement range: 0.012 to 3.60 meters
4. - Long measurement range: 0.01 to 5 meters
5. - Short measurement accuracy: ±1.0 centimeters and deviation less than 0.3 centimeters
6. - Medium measurement accuracy: ±1.0 centimeters and deviation less than 1.5 centimeters
7. - Long measurement accuracy: ±1.5 centimeters
8. - Resolution: 1 millimeter
9. - Wavelength: 940 nanometers
10. - Field of view: 15° to 27°
11. - Communication ports: UART and CAN, both ports can be used simultaneously
12. - Data output: Active and query
13. - UART baud rate: 115200 to 3000000 bits per second
14. - CAN baud rate: 100000 to 3000000 bits per second
15. - Power source: 3.7 to 5.2 volts
16. - Power consumption: 290 milliwatts
17. - Weight: 2.7 grams
18. - Dimensions: 35.58x12x8.05 millimeters
