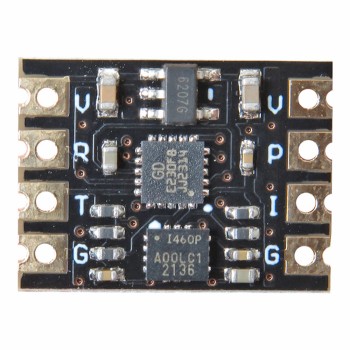

Six-axis gyroscope and accelerometer module GY-25T 6DOF with I2C communication

Six-axis gyroscope and accelerometer module GY-25T 6DOF with I2C communication
Click image for Gallery
  • Product Code:SQ12256
  • Availability: 1000
  • $4.50
  •
  • Ex Tax:$4.50
+
-


Tags: Gyroscope module, accelerometer and 6-axis gyro module, GY-25T

Description:

A gyroscope and an accelerometer are a device for measuring or maintaining rotational motion. The gyroscope module can be used to determine direction and is present in many autonomous navigation systems.
GY-25T 6DOF six-axis gyroscope and accelerometer module with I2C communication can be adjusted through the serial port and the pin outputs the high and low levels, also the module can measure the tilt angle between the surface of the sensor module and the horizontal plane and the angle Output the absolute between levels regardless of direction.
I2C output is in the form of raw gyroscope data, raw acceleration data, temperature data, Euler angle data.

Application:
Cellular phone
Tracking systems
Moving robots
Internet of Things
Portable cargo equipment
Acceleration detection
Slope measurement

Specifications:
Model: GY-25T
Power supply: 3-5V (built-in voltage drop regulator)
Communication method: serial communication (baud rate 2400-230400), IIC communication (in 400K)
Direct output of Euler angles: yaw angle (YAW) ± 180 degrees / roll angle (ROLL) ± 180 degrees / pitch angle (PITCH) ± 90 degrees + 90 degrees
Angular resolution 0.01 degrees
I2C output: raw gyro data, raw acceleration data, temperature data, Euler angle data

Datasheet GY-25T module
Documentation  Accelerometer module
