10 PCS SV01A103AEA01R00 Rotary Position Module

10 PCS SV01A103AEA01R00 Rotary Position Module
Click image for Gallery
  • Brands CJMCU
  • Product Code:SQ8652
  • Availability: 1000
  • $24.70
  •
  • Ex Tax:$24.70
+
-


Tags: SV01A103AEA01R00, Rotary Position module, 10k Potentiometer

Description:

The rotation angle sensor uses a linear potentiometer. The angle of rotation changes the resistance of the potentiometer, and the output voltage also changes.

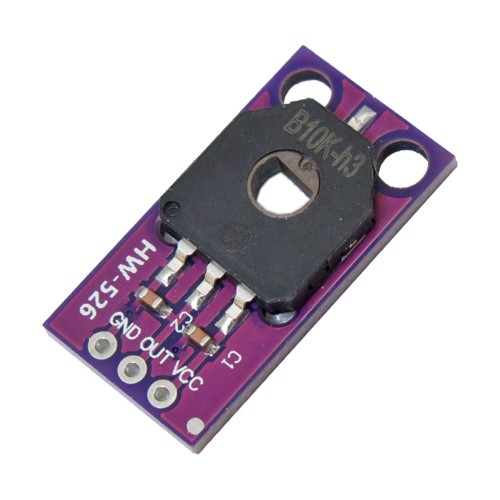

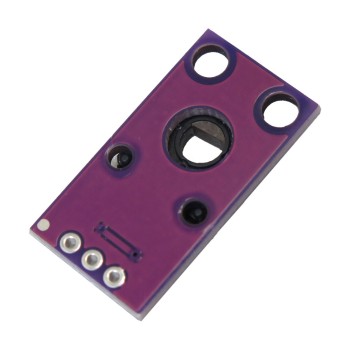

CJMCU-103 module is based on SV01A103AEA01R00 rotation sensor, has analog output voltage with 10kohm resistor and ±30% resistance tolerance.


SV01A103AEA01R00 module Application:

  1. Switch for white goods
  2. Digital still camera
  3. Switch for automotive
  4. Car audio
  5. Multi-function printer
  6. Robo
  7. Motor drive unit


SV01A103AEA01R00 module Features:

  1. Rotation Angle - Electrical, Mechanical: 0° ~ 333.3°, Continuous
  2. Output: Analog Voltage Output
  3. Actuator Type: Hole for Shaft
  4. Linearity: ±2%
  5. Resistance (Ohms): 10k
  6. Resistance Tolerance: ±30%
  7. Mounting Type: Surface Mount
  8. Termination Style: SMD (SMT) Tab
  9. Operating Temperature: -40°C ~ 85°C


Document:

  1. CJMCU-103 arduino Link
  2. Sv01a103aea01r00 datasheet Link
Interfaces
Interface Type Analog Output
Electrical Parameters
Resistance 10k
