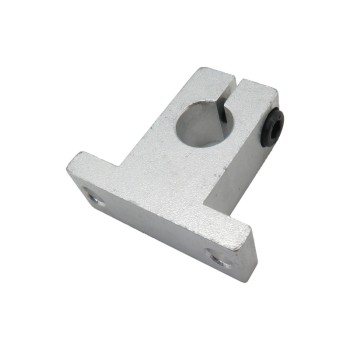

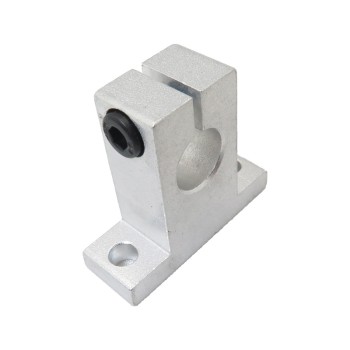

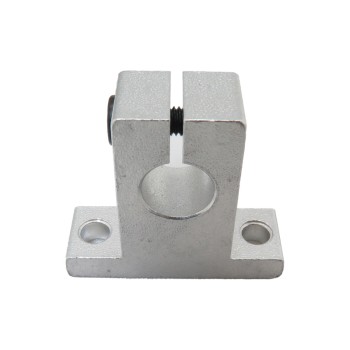

SK12 Vertical Metal Bracket

The vertical metal bracket sk12 is made of aluminum and is designed to hold the linear shaft or optical axis of 3d printer and cnc projects. this bracket, known as the sk shaft bearing, is available in various sizes such as sk8, sk10, sk12, sk13, sk16, sk20, sk25, sk30, sk40, sk50, sk60, etc. the sk bracket is made of aluminum, which is highly resistant to corrosion, rust, acid, and more, and features a slot in the shaft holding section, which is very suitable for securing the sliding shaft with a clamp. the surface of the bracket is sandblasted and oxidized, providing a strong, inexpensive, and easy installation and assembly.

1. cnc machine
2. industrial machines
3. and ...

Specifications of SK12 Vertical metal bracket:

1. model: sk12
2. inner shaft diameter: 12 mm
3. dimensions: 23mm x 21mm x 42cm
4. material: aluminum
