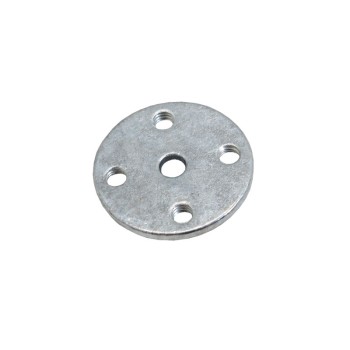

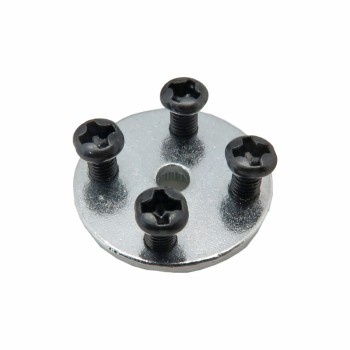

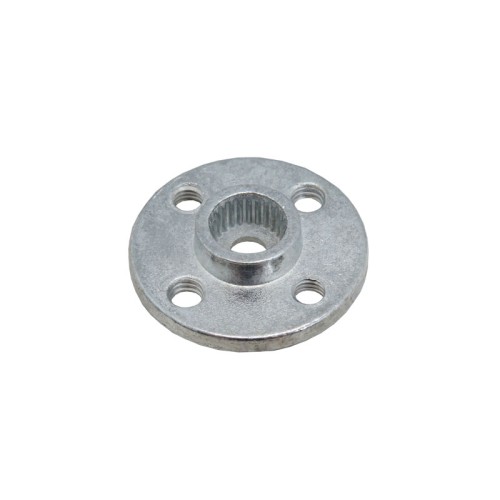

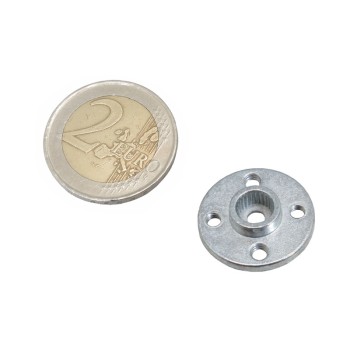

Servo Motor Aluminum Flange

The 5mm servo motor flange is suitable for servo motors with a 5mm shaft (such as the mg995 motor), and this flange is made of aluminum with four m3 screw holes. in robotics, there are generally two methods for connecting a tool to a shaft. if the tool in question also has a shaft, this connection is made via a "coupling." if the tool does not have a shaft, this connection is made through a "flange."

Application of Servo motor metal flange:

1. robotics
2. connection of standard servo motors

Specifications of the Servo motor aluminum flange:

1. material: aluminum
2. distance between the two holes on the flange: 14mm
3. diameter of the servo disk: 20mm
4. thread spacing: 5.5mm
5. screw size: m3
6. number of screw holes: 4
7. plate diameter: 20mm
