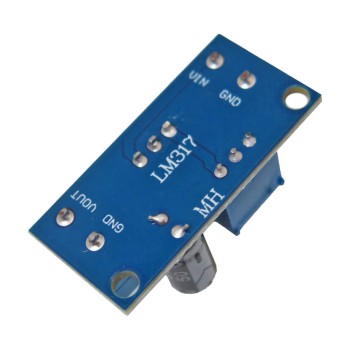

LM317 Adjustable Buck Voltage Regulator Module

The LM317 linear regulator module is a DC-to-DC step-down converter designed based on the LM317 linear voltage regulator. It is used to stabilize and generate an output voltage lower than the input voltage. In addition to the LM317 regulator, this module includes two connectors for input and output voltage connections, as well as a potentiometer for precise adjustment of the output voltage. The module can accept an input voltage in the range of 4.2 to 40 V and, depending on the potentiometer setting, provide an adjustable output voltage from 1.2 to 37 V.

Linear converters such as the LM317 have a simpler circuit design compared to switching converters and typically use only two capacitors for voltage stabilization. Unlike switching regulators, which use more complex mechanisms such as feedback loops and switching-time modulation to reduce voltage, linear regulators dissipate excess voltage as heat. As a result, their efficiency is lower, and the use of a heatsink for cooling the regulator is often necessary.

One of the main advantages of this module is its very low output voltage ripple, making it suitable for noise-sensitive systems and applications requiring stable voltage. Its simple design and low cost also make it a cost-effective choice for low-power applications. This module is ideal for systems that do not require high output current.

However, this module also has some drawbacks. Low efficiency due to thermal losses is one of its primary disadvantages. Additionally, because of heat generation, using a heatsink is essential to prevent overheating. Furthermore, the output current of this module is limited, making it suitable mainly for low-current loads.

This module is used in a wide range of applications. For example, it is ideal for powering sensitive systems that require a stable voltage with variations of less than 0.01 V. It is also commonly used in laboratory and educational projects due to its simplicity and precise voltage adjustment capability. Moreover, it is suitable for low-power applications such as powering sensors, logic circuits, and other low-current loads.

Despite its lower efficiency and output current limitations, linear regulator modules like the LM317 remain an excellent choice for low-power and noise-sensitive applications due to their simplicity, low cost, and ability to produce a stable output voltage with very low ripple. If high efficiency or high output current is not required, this module can be a suitable option.

Pin Description:

VIN:Positive input (+)

GND:Input negative (–)

VOUT:Positive output (+)

GND:Output negative (–)

LM317 Regulator Application:

1. Mobile phone
2. Laptop
3. Power line communication (PLC) modems
4. Power over Ethernet (PoE)
5. Substation control systems
6. RFID readers
7. Refrigerators and freezers
8. Signal or waveform generators
9. X-ray systems: baggage scanners, medical and dental equipment

Adjustable Step-Down Voltage Regulator Specification:

1. Output Voltage: 1.2–37 V (adjustable)
2. Rated Output Current: 1.5A
3. Max Output Current: 3 / (Vin − Vout) A
4. Input Voltage Range: 4.2–40V
5. Frequency: 100MHz
6. Operating Temperature Range: −55°C to +150°C

Documents:

LM317 Regulator Datasheet
