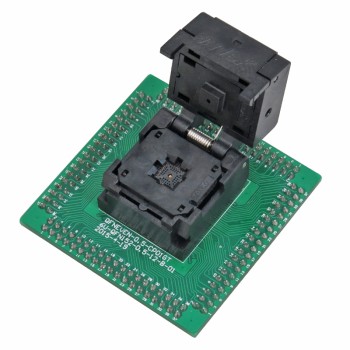

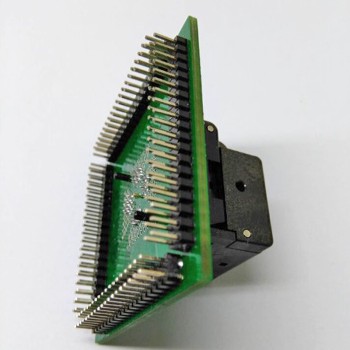

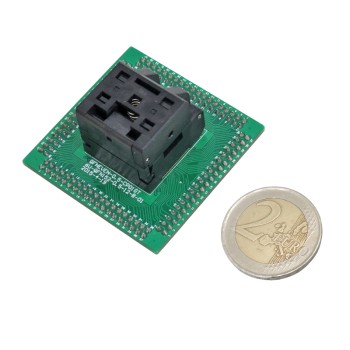

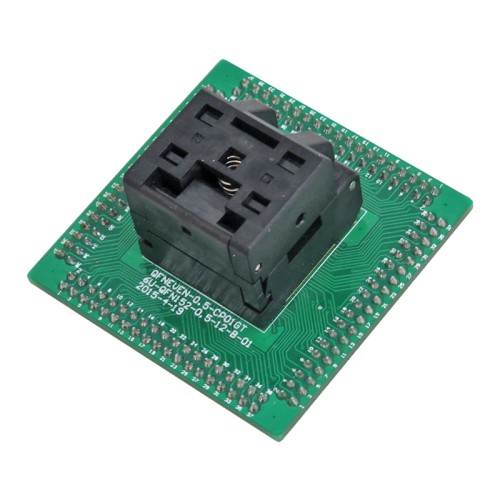

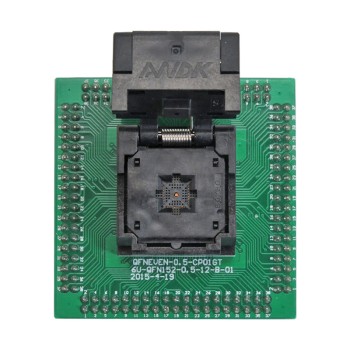

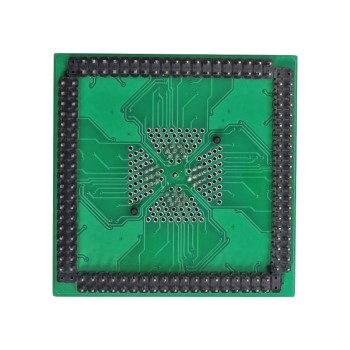

QFN32 to DIP Adapter Board

For use with breadboards and perfboards, DIP pins are essential. Due to the fine pitch and closely spaced pins of SMD ICs, designing boards and making connections can be challenging. With the QFN32 to DIP Adapter Board, you can easily extend the pins of your SMD IC to a more spacious DIP layout, making it simpler to use the desired chip.

Using the QFN32 to DIP IC Adapter Board, you can convert 32-pin SMD ICs to DIP format without soldering. This adapter is designed for 32-pin QFN packages with a 0.5mm pin pitch.

By placing the SMD IC in its designated position on the 32-Pin QFN Socket Adapter Board, you can have DIP-style pins without bending or damaging the IC leads, allowing safer and easier handling with the QFN32 to DIP IC Adapter.

Applications of the QFN32 DIP adapter SMD

1. QFN32 ICs

Specifications of the QFN32 to DIP Adapter Board

1. Package type: QFN32
2. Pin pitch: 0.5 mm
3. Number of pins: 32
4. IC dimensions: 5 x 5 mm

Documents:

QFN32 to DIP IC Adapter Datasheet
