10 PCS AMS1117 Step Down Module (3.3V DC Stepdown Regulator) [DC-DC] [800mA]

10 PCS AMS1117 Step Down Module (3.3V DC Stepdown Regulator) [DC-DC] [800mA]
  • Product Code:SQ1196
  • Availability: In Stock
  • $1.50
  •
  • Ex Tax:$1.50
This product has a minimum quantity of 5
+
-


Tags: Power Adapter Module, AMS1117 Module, DC To DC, Stepdown Regulator, DC DC Stepdown Converter

Description:

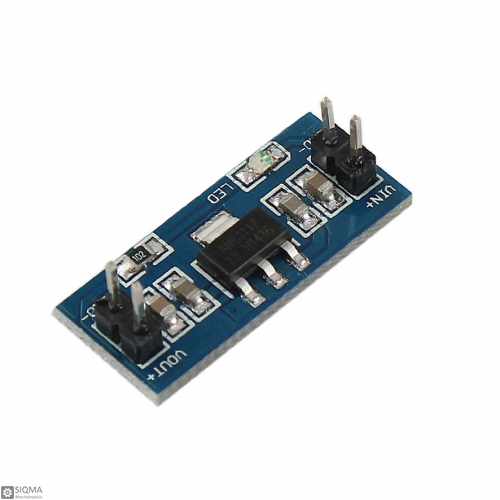

AMS1117 Step Down Module is a small DC to DC step down voltage converter, which is based on AMS1117 regulator chip. This chip is a three-terminal regulators with low dropout voltage and a maximum 1A output current. This is specialized for low voltage works which the transient response and minimum input voltage are very important. The 2.85V version of this chip is developed to Active Terminators for SCSI bus projects.
This module can be supplied with a 4.5V to 7V DC range (at least 1V higher than the nominal output voltage and up to a maximum of 12v input can be applied.), which is down to a fixed 3.3V voltage with maximum 800mA current. It can easily be connected to microcontroller through the ​​​​​​​ 3 pin connection. This regulator is necessary when you want to work on the 5V electronic prototypes, because this tiny board enables you to supply your boards and circuits from a wide range of input voltages, without anxiety. This adapter has an LED to show applying input voltage.
This adapter has two corresponding limitation work parameters, input voltage and output current, which allowed input voltage depends on maximum output got current, some of them is:
At 4.5V input, maximum output current is 800mA​​​​​​​
At 5V input, maximum output current is 540mA​​​​​​​
At 6V input, maximum output current is 300mA​​​​​​​​​​​​​​
At 7V input, maximum output current is 220mA​​​​​​​​​​​​​​
At 8V input, maximum output current is 170mA​​​​​​​​​​​​​​
At 9V input, maximum output current is 140mA​​​​​​​​​​​​​​
At 12V input, maximum output current is 90mA​​​​​​​​​​​​​​

Features:
Chip: AMS1117
Input Voltage: 4.5VDC - 7VDC input power must higher 1V than output power
Output Voltage: 3.3VDC
Output Current: 800mA
Dual-side board design
Can be fixed on the board
With power indicator
Suitable for 3.3V power electronic devices
Pin: 3 Pin
Size: 26mm x 11mm x 11mm

Package Include:
10 x AMS1117 Step Down Module

Electrical Parameters
Input Voltage 4.5VDC - 7VDC
Output Current 800mA max @4.5V input
Output Voltage 3.3VDC
Board Parameters
Main Chip AMS1117
Pin Count 3 Pin
Physical Parameters
Size 26mm x 11mm x 11mm
