5V 2A Charge Controller Module

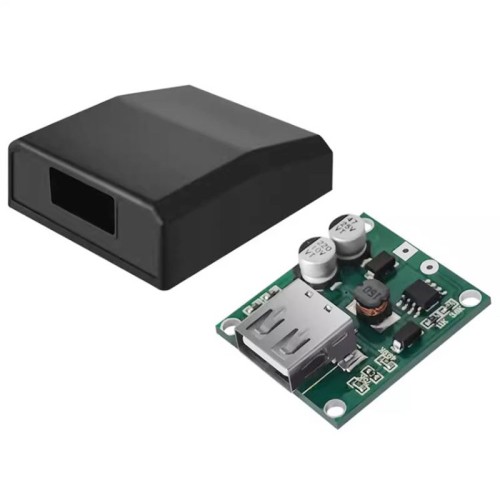

The USB Charging Module accepts an input voltage of 6–20V and provides a 5V output at 2A through the USB port. It comes with a plastic case that allows easy access to the USB port, making it suitable for smartphones, MP3 devices, and DIY solar equipment.

The 5V USB Solar Charging Module is sensitive to input polarity, so the positive and negative terminals must be correctly soldered, and the input voltage should not exceed the specified limit.

This module can also be integrated with a Solar Panel Charging Module and functions as a 5V 2A Charge Controller Module to efficiently manage power from solar panels to USB devices.

Applications of the Solar Panel Charging Module

1. Chargers
2. Solar Accessories

Specifications of the solar charger USB regulator

1. Input Voltage: 5–20V DC
2. Output Voltage: 5V DC (stable)
3. Maximum Output Current: 2A
4. Conversion Efficiency: Up to 95%
5. Operating Temperature Range: -40°C to +85°C
6. Output Connector: USB female, compatible with any 5V digital device
7. Dimensions: 3 × 3.5 cm
