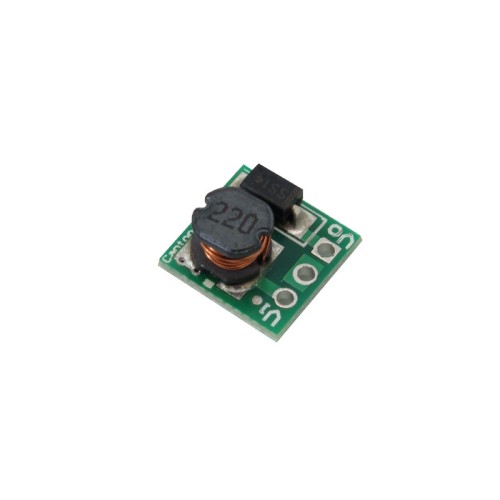

5V DC-DC Boost Converter Module

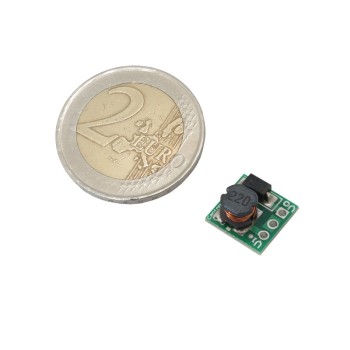

The 5V DC-DC Boost Converter Module is a small and versatile electronic component designed to convert low input voltage into a stable 5V output. This module is a 5V DC-DC Boost Converter, achieving around 85% efficiency, which allows it to transfer energy from input to output effectively. Its compact size measures only 11 × 10.5 mm with a height of 7.5 mm, and the pin spacing is 2.54 mm. Operating at a switching frequency of 150 kHz, it ensures fast and stable performance.

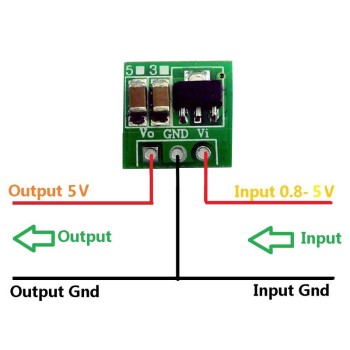

The input voltage range of the 5V Mini DC-DC Boost Converter Module is 0.9V to 5V, while the output remains a constant 5V. Output current varies with input voltage: 40–100 mA at 1–1.5V, 100–150 mA at 1.5–2V, 150–380 mA at 2–3V, and up to 480 mA for inputs above 3V. The module can even start operating at 0.8V with a current of 7 mA.

This 5V Voltage Converter Module is a reliable Boost Converter with built-in protections against overcurrent and overheating, ensuring high safety. Its compact design and stable voltage output make it ideal for Arduino, Raspberry Pi, sensors, light power supplies, and USB charger projects. Overall, the 5V DC-DC Boost Converter Module combines high efficiency, stable output current, and a small footprint, making it a dependable choice for any electronics project.

Applications of the 5V DC-DC Boost Converter Module

1. Providing stable 5V power in Arduino and microcontroller projects
2. Converting AA or lithium battery voltage to 5V for powering circuits
3. Building portable USB chargers for mobile devices and small gadgets
4. Supplying power to sensor modules and communication modules in electronic projects
5. Stabilizing input voltage for Raspberry Pi and development boards
6. Designing compact, lightweight power supplies for portable devices
7. Powering circuits and serving as a voltage regulator in various projects

Specifications of the Boost Module

1. Module Type: DC-DC Boost Converter
2. Input Voltage: 0.9V to 5V
3. Output Voltage: Fixed 5V
4. Maximum Output Current: 480 mA
5. Start-up Voltage: 0.8V with 7 mA current
6. Operating Frequency: 150 kHz
7. Conversion Efficiency: ~85%
8. Pin Spacing: 2.54 mm
9. Physical Dimensions: 11 × 10.5 × 7.5 mm
10. Application: Voltage Boost Converter for stabilizing voltage and providing adequate current in small circuits
11. Output Current by Input Voltage:

• Input 1–1.5V → Output 5V, 40–100 mA
• Input 1.5–2V → Output 5V, 100–150 mA
• Input 2–3V → Output 5V, 150–380 mA
• Input above 3V → Output 5V, 380–480 mA
