Lithium Battery Capacity Display Module

The background color is blue or green and is shipped randomly.

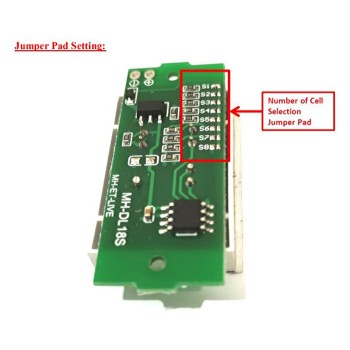

The Lithium Battery Capacity Display Module is a versatile LED battery indicator designed for accurate state-of-charge monitoring across a wide range of lithium battery systems. With a working voltage range of 6V, 12V, 24V, 36V, and 48V, this module supports 1~8S battery packs, including popular 3.7V, 7.4V, 11.1V, and 14.8V lithium configurations. It is compatible with AA and AAA batteries and handles nominal capacities from 2Ah up to 200Ah.

Featuring a clear blue and green LED display, this Li-po battery indicator provides instant visual feedback on remaining capacity, helping you prevent over-discharge and extend battery life. The module is rated at 6V and is ideal for e-bikes, electric scooters, solar energy storage, UPS systems, portable power stations, RC models, and DIY electronics projects. Compact, easy to install, and highly reliable, it is an essential accessory for any lithium battery-powered application.

Instructions:

Connect the positive and negative terminals of the screen to the positive and negative terminals of the battery.

It shows the battery power parameter:

• Battery voltage is more than 3.3V (power 1 unit will be on)
• The battery voltage is more than 3.5V (the power of 2 units will be on)
• Battery voltage is more than 3.7V (power 3 units will be on)
• Battery voltage is more than 3.9V (power 4 units will be on)

Battery Capacity Display Application:

1. Nickel-metal hydride batteries
2. 18650 battery
3. Lithium polymer battery packs
4. Other electrical equipment

Battery Capacity Display Specifications:

1. Rated voltage: 6V
2. Nominal capacity: 2 - 200 Ah
3. Battery compatibility: AA, AAA
4. Working voltage range: 6/12/24/36/48 volts
5. Battery type: 3.7V/7.4V/11.1V/14.8V (optional)
6. Display type: LED
7. Display color: Blue & Green
8. Item name: Li-po battery indicator
9. Working voltage: 6/12/24/36/48 volts
10. Mounting hole: M2 screw
