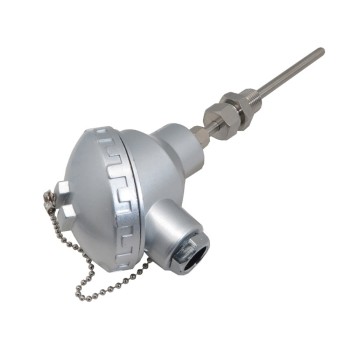

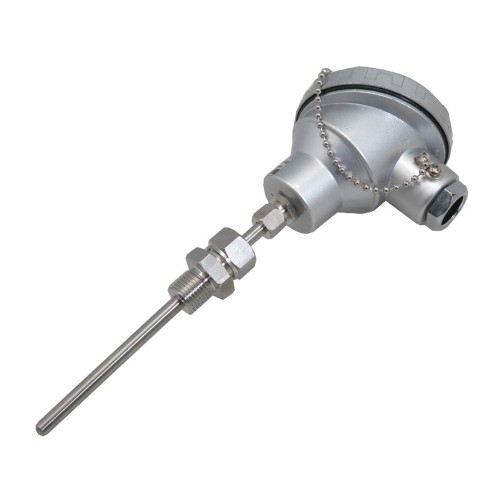

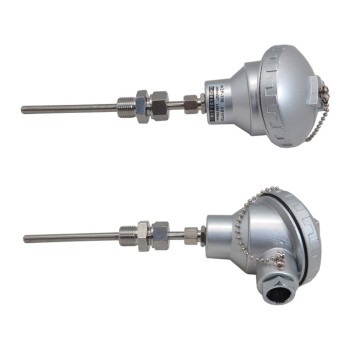

PT100 Temperature Resistance Sensor Probe

A PT100 probe is an assembly composed of an RTD element, a sheath, a lead wire, and a termination or connection. The Pt100 is a temperature sensor that contain a resistor that changes resistance value as its temperature changes.

Pt100 probes may be terminated in a connection head, quick disconnect, terminal block, or extension wire. OMEGA’s standard terminations are pictured on product pages. Other termination styles are available upon special request. For something other than standard products, please contact our sales team to submit a full description and/or sketch of your desired version.

Industrial
Cooler system
Humidifier

Features:
Product name: Thermal Resistance

Model: PT100

Insert material: 316 stainless steel

Junction box material: thick aluminum alloy

Pole diameter: 6mm

Thread size: M16x1.5

Temperature measuring range: -200 to + 450 degrees

Chip thermal resistance: 2 lines
