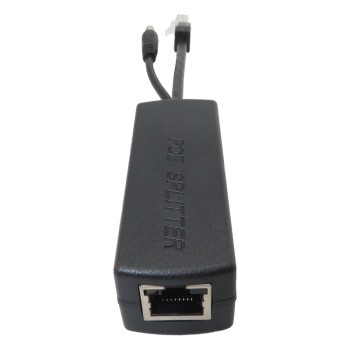

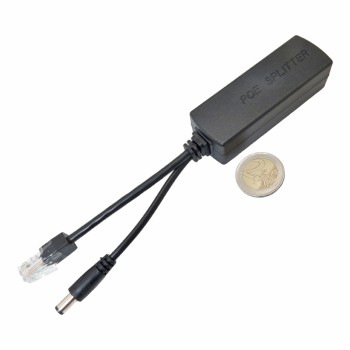

POE splitter with 2A 12V camera connection capability

poe (power over ethernet) is one of the most suitable sources for transferring electrical power to remote devices. but what happens if your equipment does not support poe? poe is a type of technology that means power over a network cable, and a poe splitter is a small device that can transmit both power and data simultaneously.

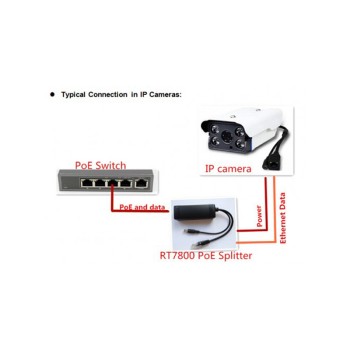

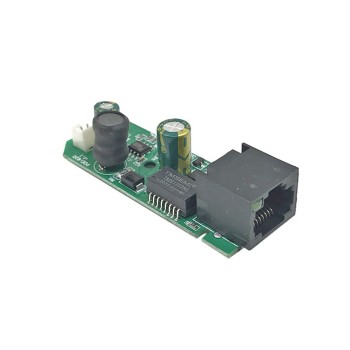

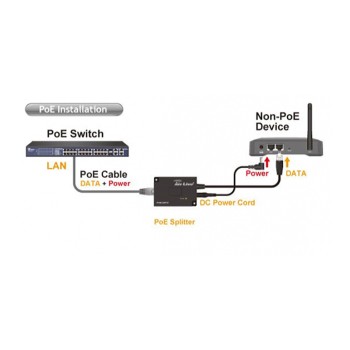

therefore, since not all surveillance cameras have poe capability, this issue can be resolved using this device. additionally, with the poe splitter that can connect to the camera, you can separate power and network signals and add poe power capability to a surveillance camera lacking this feature. the rt7800 series modules can be used to transfer energy from a cat5 ethernet cable to the ieee 802.3af network in poe. the dc/dc converter rt7800 adjusts the output voltage while receiving various input voltages. this converter also has short-circuit protection. by using a poe splitter, there is no longer a need for separate wiring for each camera; you just need to add poe to the surveillance camera that lacks this feature.

application of POE splitter with 2A 12V camera connection capability:

1. surveillance cameras
2. access points
3. alarm and security systems
4. voip phones
5. network terminal equipment

specifications of POE splitter with camera connection capability:

1. compatible with ieee802.3 af/at
2. integrated lan filters
3. output voltage of 5, 12, and 24 volts dc
4. current: 2 amps
5. low output noise and ripple
6. wide input voltage range
7. short circuit protection
8. protection up to 1500 volts
9. capable of connecting to a camera
