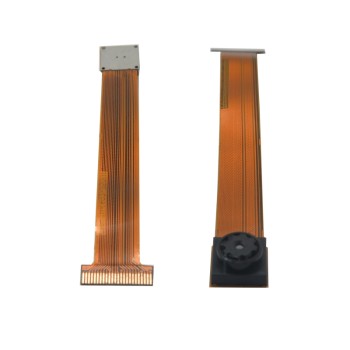

2 Megapixel OV2640 Camera Module

The OV2640 2-megapixel camera module is one of the best choices for electronics and AI projects, designed around the OmniVision OV2640 sensor. This OV2640 camera module is supplied with a fixed, non-replaceable lens and is capable of capturing images at a resolution of 1600 x 1200 pixels and recording video at 15 frames per second. Connecting this 2-megapixel camera module to various microcontrollers such as Arduino is easily done via SPI and I2C interfaces, and it comes with connection cables.

This SPI-interface OV2640 camera operates on 5V DC, with very low power consumption: approximately 70 mA during operation and 20 mA in standby mode, making it suitable for low-power and portable projects. The 2-megapixel resolution of this module allows users to capture high-quality images, and thanks to the OmniVision OV2640 CMOS sensor, color quality and image accuracy are provided at an optimal level. The module's color field of view is approximately 68 degrees, which is very suitable for various applications such as depth perception and stereo vision.

In terms of image formats, this OV2640 camera module supports RAW, YUV, RGB, and JPEG formats and can record video at various resolutions and frame rates, such as 1600 x 1200 at 15 fps, 1280 x 1024 at 15 fps, 800 x 600 at 30 fps, and 352 x 288 at 60 fps. These features make it suitable for projects requiring different qualities and speeds.

Communication interfaces include I2C for sensor configuration and SPI for sending commands and data transfer at 4 MB/s, enabling easy integration of this 2-megapixel camera with various development boards such as STM32, FPGA, DSP, and Arduino. Additionally, a digital video port with 3.3V LVTTL logic level and a 20-pin connector with a 2.54 mm pitch are other hardware features of this product.

This 2-megapixel camera module is particularly useful in applications such as AI, depth perception, stereo vision, and low-light systems, and can easily be used in machine vision and image processing projects. The ability to connect directly to the Arducam B0074 shield and the Arducam ESP8266 UNO B0082 board makes it highly efficient and flexible for both professional and beginner Arduino users.

Overall, this 2-megapixel OV2640 camera module is an ideal choice for advanced electronics, AI, and machine vision system projects. Due to its low power consumption, high image quality, and extensive communication capabilities, it can meet the diverse needs of hardware and software developers.

OV2640 Camera Module with Connector Application:

1. Use in Arduino and microcontroller projects compatible with SPI and I2C interfaces, such as STM32, ESP8266, ESP32, and FPGA.
2. Application in artificial intelligence and machine vision systems.
3. Implementation of depth perception and 3D vision systems.
4. Use in robotics and remote control.
5. Recording medium-quality video and photos for surveillance systems.
6. Application in image processing and object detection projects.

2 Megapixel camera for microcontroller Specification:

1. Image Sensor: CMOS OmniVision OV2640
2. Image Resolution: 2 Megapixels
3. Photo Quality: 1600 x 1200 pixels
4. Video Frame Rate: 15 FPS at 1600 x 1200 resolution
5. Supported Video Formats:(1600 x 1200 @ 15 FPS, 1280 x 1024 @ 15 FPS, 800 x 600 @ 30 FPS, 352 x 288 @ 60 FPS)
6. Supported Photo Formats:RAW, YUV, RGB, JPEG
7. Communication Interfaces:
8. I2C for sensor configuration
9. SPI for sending commands and data streaming at 4 MB/s
10. Digital Video Port: Compatible with 3.3V LVTTL logic levels
11. Connector: 20-pin header with 2.54 mm pitch
12. Input Voltage: 5V DC
13. Current Consumption: 70 mA active, 20 mA standby
14. Color Field of View: Approximately 68 degrees
15. Direct Mounting: Compatible with Arducam Shield Model B0074 and Arducam ESP8266 UNO Board Model B0082
16. Compatibility: Easy integration with STM32, FPGA, DSP, Arduino, and other microcontroller boards
17. Product Dimensions: 27 x 27 x 10 mm

OV2640 Features:

1. Easy connection to various microcontrollers via SPI and I2C interfaces.
2. Supports RAW, YUV, RGB, and JPEG photo formats for flexibility in image processing.
3. Low power consumption with a 5V input and 70mA current in active mode.
4. Capable of recording video in various qualities and frame rates up to 60 FPS.
