3950 NTC thermal resistor

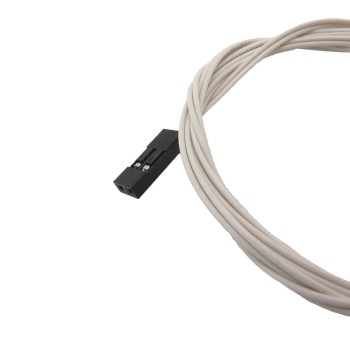

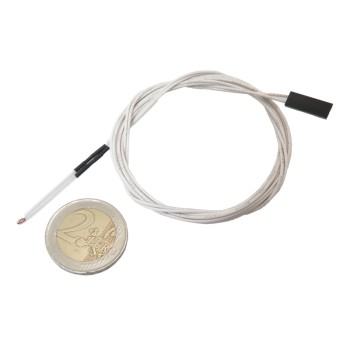

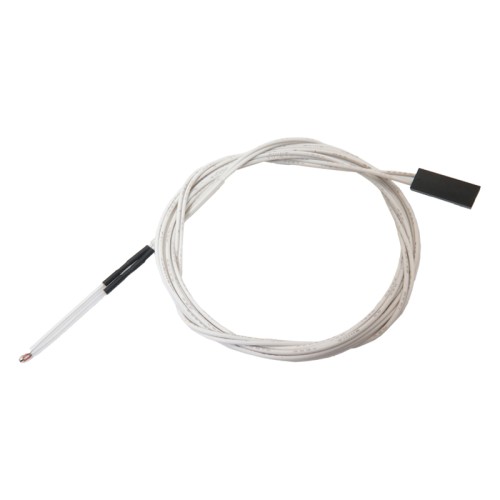

in a 3d printer, print quality depends on various factors, and one of the most important is the precise adjustment of temperature and the ability to withstand a particular temperature. thermal resistance is affected by temperature and has two types: ptc and ntc. the 3950 ntc thermal resistor has a negative thermal coefficient at a temperature of 25 degrees celsius, has a resistance of 100 kilohms, and its resistance decreases with increasing temperature. the ntc 3950 thermal resistor is glass-shaped, has a two-wire connector, and is 1 meter long.

application of ntc temperature sensor:

1. industries
2. 3d printer
3. medical industries
4. office and automation devices such as printers and fax machines

specifications of 3950 NTC thermal resistor:

1. sensor type: ntc 3950 thermistor
2. material: plastic and metal
3. wire length: 1 meter
4. equipped with a two-pin connector
5. maximum load: 45 milliwatts
6. heating time constant: 7 seconds or less
7. resistance value: 100 kilo ohms
8. temperature coefficient: -2 to 5 percent
9. accuracy: ± one percent
10. temperature range: -40 to 300 degrees celsius

Documents:

ntc 3950 thermistor datasheet
