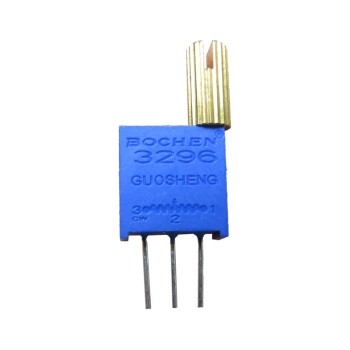

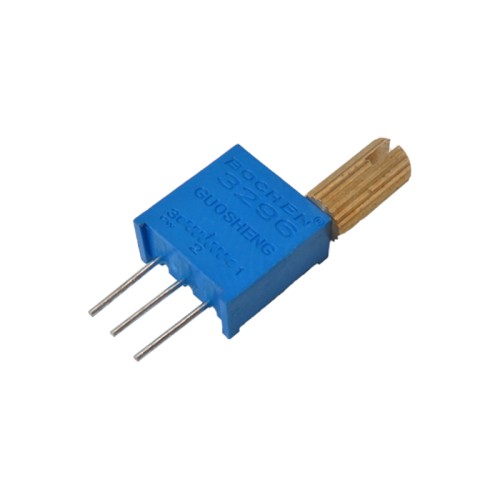

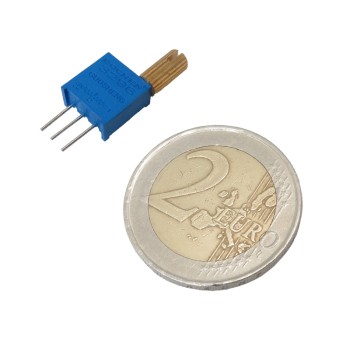

100k ohm Multiturn

A multiturn potentiometer is a potentiometer whose resistance has several turns, and by turning its volume, the exact resistance value can be achieved, and it is easier and more convenient to adjust than conventional potentiometers. Like resistors, multiturns have different values ​​​​for use in various cases, and this Multiturn potentiometer 100K is rectangular with three legs.
A multiturn is used for high-precision adjustments in electronic circuits. This type of variable resistor usually has multiple turns of rotation (usually 5, 10 or 20 turns), which allows you to adjust voltage or current more accurately than single-turn potentiometers.

application of multiturn 100K ohms:

1. laboratory equipment
2. control systems

specifications of 100k ohm multiturn:

1. weight: 0.78 grams
2. resistance value: 100 kω
3. resistance tolerance: 10%
4. installation type: vertical
5. length: 9.51 mm
6. width: 4.8 mm
7. height: 11.45 mm
8. operating temperature range: -55~125 °c
9. type: multi-turn
10. package shape: rectangular
