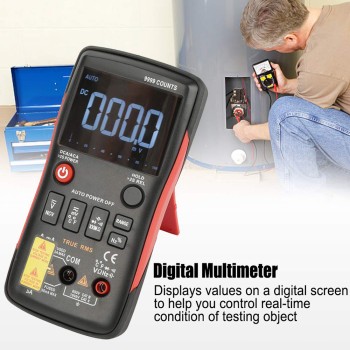

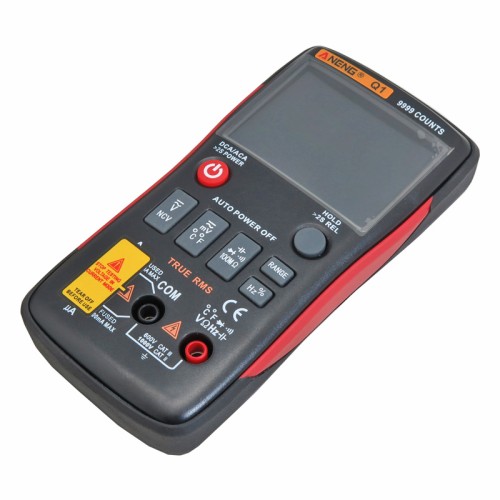

ANENG Q1 Smart Multimeter

a multimeter is one of the essential and important tools in electrical and electronic technical work, found in various forms in the market. the aneng q1 multimeter is a digital multimeter with a 4-digit display that can measure and display up to the number 9999 in any unit of measurement with high precision, and it automatically ranges, which accelerates the measurement of values regardless of the measurement range. however, it is always important to ensure that the value does not exceed the standard limit. the aneng q1 smart digital multimeter can measure alternating and direct voltage and current values, test continuity, test diodes, measure resistance, capacitance, and frequency, and it operates in both manual and automatic modes at temperatures from 0 to 40 degrees celsius. the power supply for the aneng q1 digital multimeter comes from two 1.5-volt batteries, and the multimeter should be turned off before replacing the batteries.

application of ANENG Q1 Multimeter:

1. repairs
2. industries and workshops
3. electrical and electronic projects

1. operating temperature range: 0 to 40 degrees celsius
2. working humidity: maximum 75 percent
3. storage temperature: -20 to 60 degrees celsius
4. power supply: two aa 1.5v batteries
5. temperature measurement range: -20 to 1000 degrees celsius
6. capacitance measurement range: 9.99nf / 99.99nf / 999.9nf / 9.99μf / 99.99μf / 999.9μf / 9.999mf
7. voltage measurement range: 999.9mv / 9.999v / 99.99v / 999.9v
8. current measurement range: 999.9μa / 99.99μa / 999.9ma / 10a
9. resistance measurement range: 99.99 / 999.9 / 9.999k / 99.99k / 999.9k / 9.999m / 99.99m ohms
10. frequency measurement range: 99.99hz / 999.9hz / 9.999khz / 99.99khz / 999.9khz / 5mhz

features of ANENG Q1 Digital Smart Multimeter:

1. diode test
2. continuity test: detecting whether connections are open or closed
3. displays values up to 4 digital digits
4. automatic range selection (auto-range)
5. automatic shut-off capability (auto-off)
6. manual and automatic range setting capability

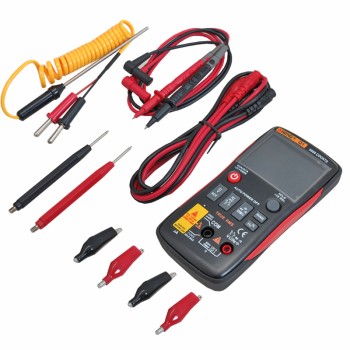

1. multimeter

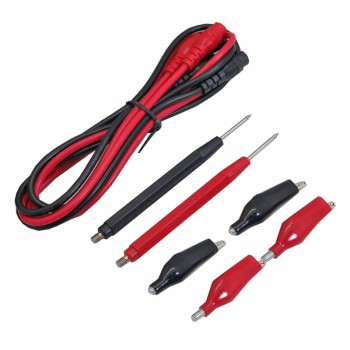

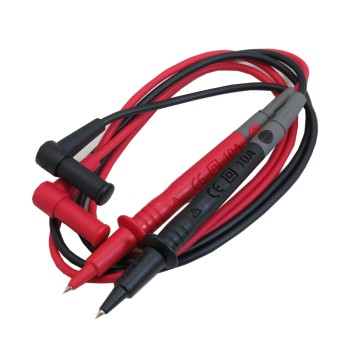

2. test lead

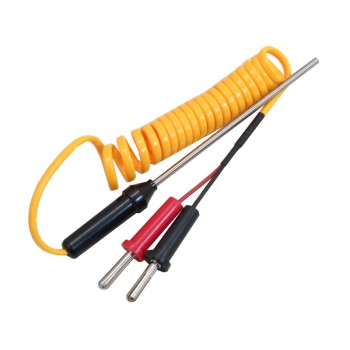

3. temperature measurement cable
4. english user manual
5. 16 probe tips

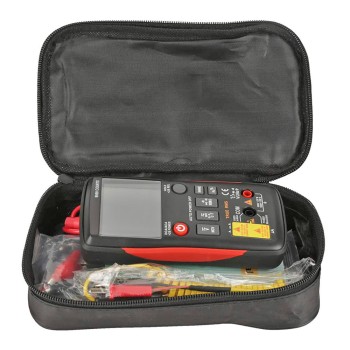

6. multimeter case
