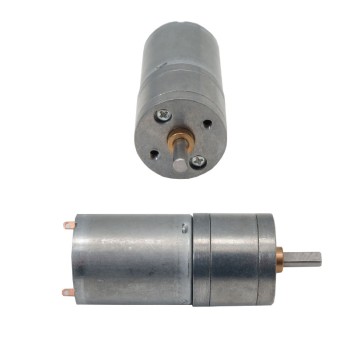

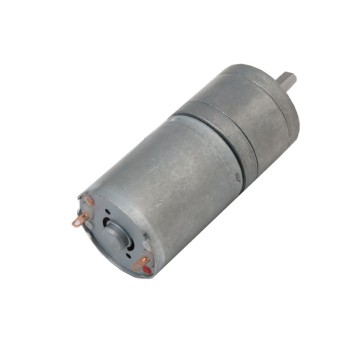

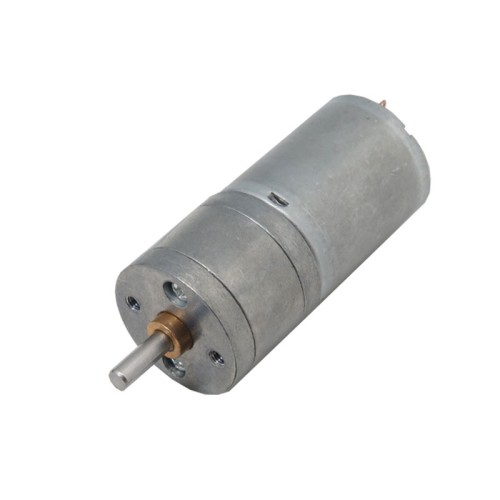

6V DC Gear Motor

The 6V Metal Gear Motor GA25YN370 is a high-torque DC motor operating at 6 volts, with a power output of 3.5 watts and a current draw of 0.06 A. Its compact design and durable metal gearbox provide stable and reliable performance, making it suitable for a wide range of applications.

This 6V DC Gear Motor features a specially designed gearbox that optimizes speed and torque conversion. The GA25YN370 Low-Speed Motor has a no-load speed of 150 RPM, delivering precise control and accuracy for robotics, industrial automation, smart devices, and toy machines.

As a 6V Small Electric Motor with a High-Torque DC Motor profile, it is ideal for systems that require high mechanical power while maintaining low energy consumption. Its combination of durability, efficiency, and precision makes it a perfect choice for both professional and hobbyist projects.

Applications of the 6V DC Gear Motor

1. Robotics: Ideal for robots and automated projects requiring precise, high-power movement. The metal gearbox ensures better performance under heavier loads.
2. Toy Vehicles: Provides accurate and controlled motion for toys that require precise movement.
3. Industrial Automation: Perfect for systems needing high torque and low speed, serving as an efficient actuator for small machinery and power transmission systems.
4. Electric Locks and Automatic Doors: Suitable for high-power, low-energy applications in electric locking systems and automated doors.
5. Smart Home Devices: Can be used in home automation projects to drive components or perform mechanical tasks efficiently.

Specifications of the 6V DC Gear Motor

1. Model: GA25YN370
2. Motor Type: Brushed DC Motor
3. Rated Voltage: 6V
4. Rated Power: 3.5 W
5. Rated Current: 0.06 A
6. No-Load Speed: 150 RPM
7. Torque: High (compared to similar motors without a gearbox)
8. Gearbox Type: Metal (enhanced strength and efficiency)
9. Gear Reduction Ratio: Optimized for lower speed and higher torque
10. Shaft Size: Single-shaft, 2.5 mm
11. Body Diameter: 25 mm (Ø25)
12. Shaft Diameter: 4 mm (Ø4.0)
13. Flange Diameter: 24.4 mm (Ø24.4)
14. Overall Motor Height: 30.8 mm
15. Mounting Hole Distance: 2 holes, Ø3 mm (2-M3.0)
16. Gearbox Inner Diameter: 7 mm (Ø7.0)
17. Gearbox Length: 18.3 mm
18. Dimensional Tolerance: 12 mm ±0.5 mm

Features of the 6V DC Gear Motor

1. High torque at low speed
2. Metal gearbox design
3. No-load speed of 150 RPM
4. Low power consumption (3.5 W)
5. Stable and durable performance
6. Compact and suitable size
