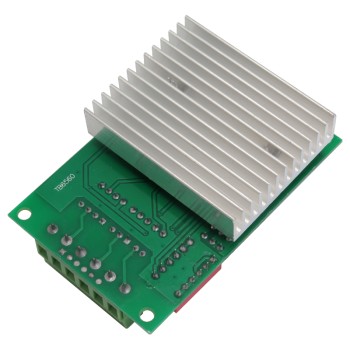

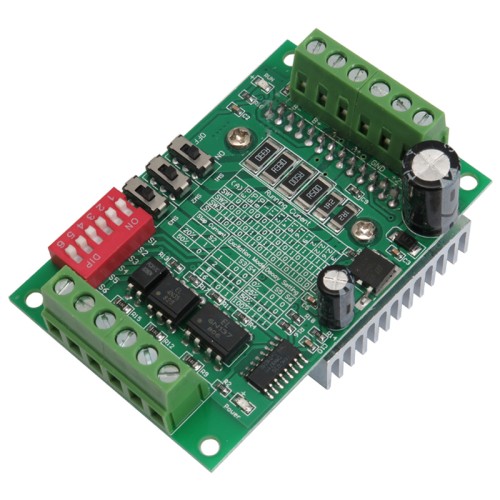

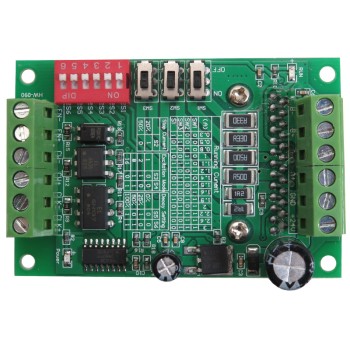

TB6560 CNC Stepper Motor Driver Module

TB6560 CNC Stepper Motor Driver Module
Click image for Gallery
  • Product Code:SQ2883
  • Availability: 1000
  • $6.00
  •
  • Ex Tax:$6.00
This product has a minimum quantity of 10
+
-


Tags: TB6560, Stepper Motor Driver, CNC Driver

Features:
1) Working voltage DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
2) Adopt 6N137 high-speed diaphragm to ensure high speed without losing step.
3) Adopt Toshiba TB6560AHQ brand new original chip, which has low voltage shutdown, overheat shutdown and overcurrent protection circuit to ensure the best performance.
4) The rated maximum output is: ±3A, peak 3.5A.
5) It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, not suitable for stepping motor over 3A.
6) Automatic semi-flow function.
7) Subdivision: full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.

Package Include:
1x TB6560 Module
Electrical Parameters
Voltage DC 10-35V
Current 3A
Physical Parameters
Size 50mm x 75mm x 35mm
