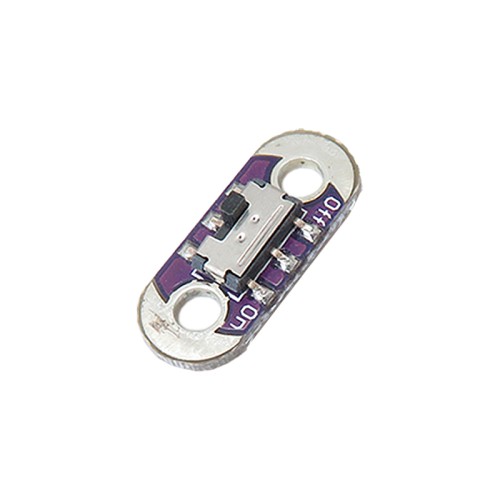

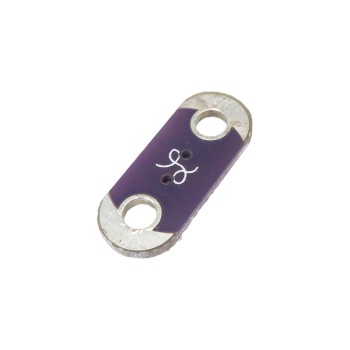

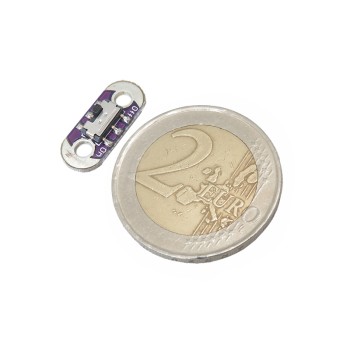

LiLypad Slide Switch

a miniature slide switch is a small mechanical switch used to change the status of a circuit from off to on, and due to its mechanical movement structure, it is called a sliding switch. sliding switches are produced in various models, and depending on their package, their number changes. this switch, 0202, is of the dpdt type with a vertical smt package.

application of LiLypad Slide Switch:

1. electronic projects
2. telecommunication products
3. testing and measurement equipment

specifications Slide switch:

1. maximum power: 1.2 va
2. maximum switching voltage: 12 vdc
3. maximum switching current: 100 ma
4. high longevity
5. contact resistance: < 80m ω
6. dielectric strength: 0.1 kv at 50 hz/1 min
7. operating temperature range: –40°c to +85°c

Documents:

datasheet for switch ayz0202
