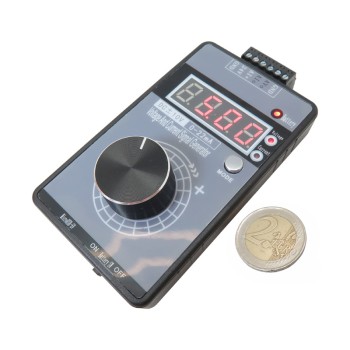

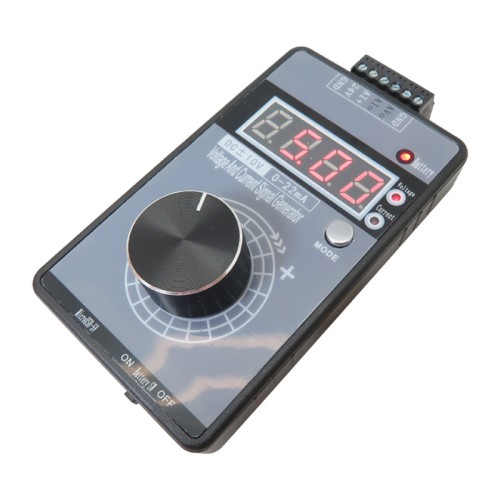

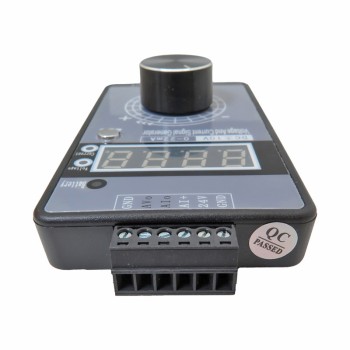

Voltage and current generator signal
- Product Code:SQ10807
- Availability: 1000
- $11.13
- Ex Tax:$11.13
Tags: signal generator, current generator, voltage and current signal generator
Signal generator is one of the essential equipment in electronics and telecommunications laboratories for analyzing and examining high-frequency signals.
In telecommunications laboratories, it is often necessary to generate a signal with desired characteristics as a test and connect it to the circuit to be used as an input source, noise, or any other external factor that is only under the control of the user.
The voltage and current signal generator produces a current signal with a current range of 0 to 22 mA and voltages of different values in the ranges of -10 to +10, 0 to 3.3 V, 0 to 5 V, 0 to 10 V. The 4-bit display allows the display of values and has an aluminum body.
application of Signal Generator JS-VISG-M-S:
- laboratory
- plc device tests
- device repairs
- testing and examining various circuits
specifications of Voltage and current generator signal:
- output current: 22 ~ 0 milliamperes
- output current accuracy: 0.01 milliamperes
- output voltage: 10+ ~ 10- volts dc adjustable
- maximum output current: 100 milliamperes
- protection against short circuit
- 4-digit display
- operating temperature: 50 ~ 20- degrees celsius
- storage temperature: 80 ~ 25- degrees celsius
- powered by a 1000 mah 3.7 volt lithium battery

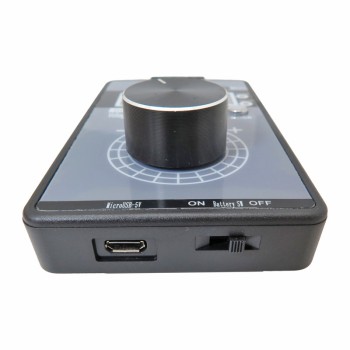

- charging via micro usb port
