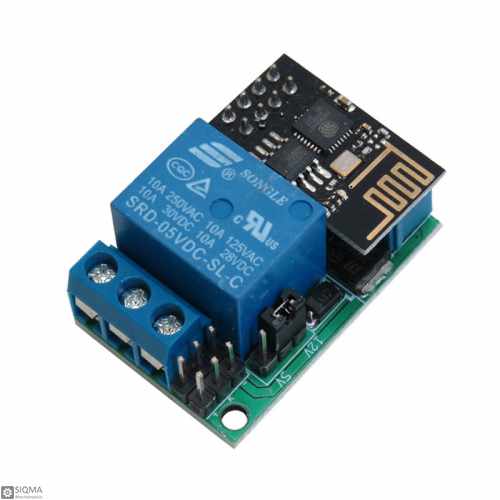

ESP8266 Single Channel WiFi Relay Module [5V] [10A]

ESP8266 Single Channel WiFi Relay Module [5V] [10A]
  • Product Code:SQ8826
  • Availability: In Stock
  • $5.40
  • Ex Tax:$5.40
This product has a minimum quantity of 2

Tags: 5V Relay, 10A Relay, WiFi Relay, Smart Home, Wifi SoC, IOT Wifi, ESP8266 Relay, Single Channel Relay

The 5V Single WiFi relay module uses ESP8266 as the WiFi module, which is compatible with 8 bit MCU chips. Only a simple configuration process can realize the wireless control of the 1-way relay by using the mobile phone APP in the LAN.
Onboard the ESP8266 WiFi module has three working modes: STA (client), AP (hot), STA + AP (hot + client).
This is a perfect kit for controlling all your household appliances with your phone wherever you are.
The maximum transmission distance depend on the router’s signal intensity.

Control Mode: Remote, Local
Control Voltage: 5V
Working Power: <0.5W
Link Method: wireless802.11 b/g/n standard
Control Pin: common, normally open, normally closed
Load Voltage: 250V AC, 30V DC (Max)
Load Current: 10A (Max)
Size: 37mm x 25mm x 20mm

Package Include:
1 x Esp8266 1 channel WiFi Relay Module

Electrical Parameters
Control Voltage 5Vdc
Load Current 10A (Max)
Load Voltage 250Vac, 30Vdc (Max)
Power 0.5W (Max)
Physical Parameters
Size 37mm x 25mm x 20mm
