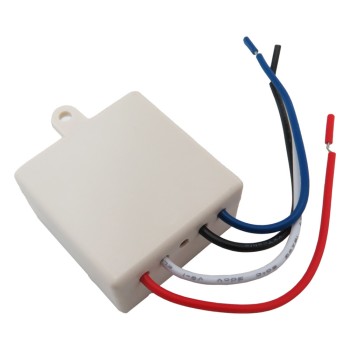

Wireless remote control relay lamp kr2201g

Wireless remote control relay lamp kr2201g
Click image for Gallery
  • Product Code:SQ12255
  • Availability: 1000
  • $1.90
  •
  • Ex Tax:$1.90
This product has a minimum quantity of 3
+
-


Description:

Wireless remote control function operating instructions
*The indicator light lights up to indicate that the "smart circuit breaker" has entered the state of paired remote control.
Manual switch mode description
No remote control is needed. Press the code matching button once to turn on the "intelligent switch", and press the code matching button again to turn off the "smart switch".
Self-locking mode coding instructions
(One button on the remote control, press once to turn on, and press again to turn off. This mode is suitable for 1 remote control button to control 1 "smart switch")
Setting method: Press the code matching button on the "smart circuit breaker" twice, and the red indicator light will flash and then light up; press the button that needs to be paired on the remote control, and when the red indicator light will flash and then go out, the self-locking mode is set successfully. .
Interlock mode coding instructions
(Set one button to only turn on and the other button to turn off. A remote control with at least two buttons is required. This mode is suitable for one remote control to control multiple "smart switches".)
Setting method: Press the code button on the "smart circuit breaker" three times, and the red indicator light will flash and then light up; press the button on the remote control that needs to be set to turn on the function (such as button A). After the red indicator light flashes, continue pressing The red indicator light of the button on the remote control that needs to be set to off function (such as button B) flashes, and the interlock mode is set successfully.
Instructions for coding in jog mode
(The same button, press and hold to open, release to close.)
Setting method: Press the code matching button on the "smart switch" 4 times, the red indicator light flashes and then lights up; press the button that needs to be paired on the remote control, when the red indicator light flashes and then goes out, the self-locking mode is set successfully .
reset settings
After pressing the learning button of the "smart switch" 8 times, the "smart switch" clears all remote control data in its memory. When the LED of the "intelligent circuit breaker" flashes 8 times continuously, it indicates that the reset has been completed. If it has been set to the power-on state, it will also be reset to the power-on and power-off state.
2. Attention
1) Do not perform wiring while the power is on. After confirming and confirming that it is correct, disconnect the power and then connect the power again.
2) When the voltage of the remote control is low, please replace the battery in time (when the battery voltage of the remote control is low, the distance of the remote control will generally become shorter).
3) When using wireless electronic products, please be careful to avoid using metal masks, large electronic equipment, electromagnetic fields and other strong interference sources to prevent the distance between the remote control and the receiver from being too short or failure to operate properly.
4) Please do not use this electronic product abnormally. Abnormal use will reduce product performance and life. In severe cases, it will damage the product and bring hidden dangers to your safety.

Application:
smart House
shop
workshop

Specifications:
Model: kr2201g
Working voltage: AC 90V ~ 250V
Off current: <5 mm
Maximum current: 10a
Maximum load: 2200 watts
Frequency: 433-433.92 MHz
Working temperature: -30 ~ 80
Receive sensitivity: > 108 dbm
Number of memory remote controls: 25
Support code: 2262 support code, fixed code
Reception space: open space is more than 50 meters, internal partition is 15 meters
Wall switch size: 86 standard size
Battery replacement: Use AAA batteries
