10 PCS 10A 5V Relay Module

10 PCS 10A 5V Relay Module
  • Product Code:SQ3064
  • Availability: In Stock
  • $10.80
  • Ex Tax:$10.80

Tags: Single Channel Relay, 5V Relay, 10A Relay

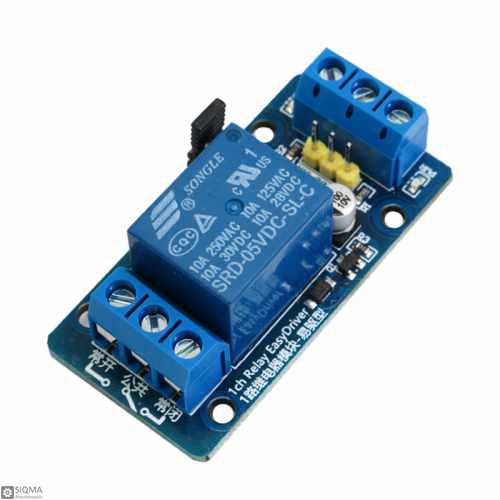

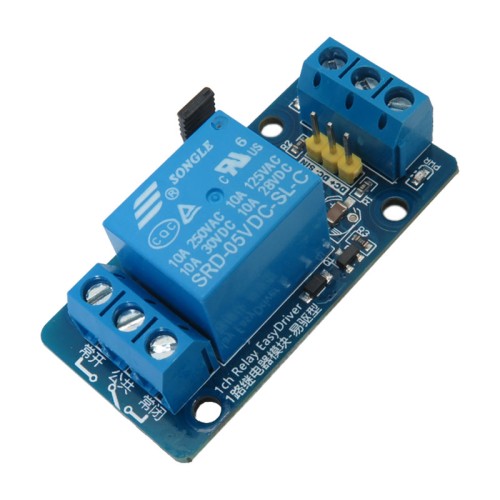

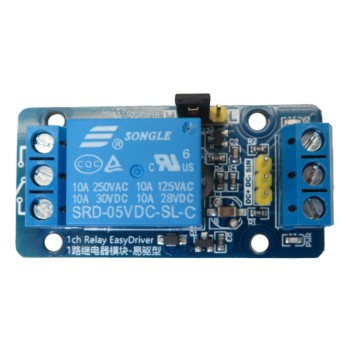

This 1-channel 5V control Single-Pole Double-Throw (SPDT) High-level trigger AC power relay board can be controlled directly via a microcontroller and switch up to 10A at 250 VAC. The inputs of 1 Channel 5V Relay Module are isolated to protect any delicate control circuitry.
The default state of the relay when the power is off for COM (Power) to be connected to NC (Normally Closed). This is the equivalent of setting the relay board IN pin to HIGH (has +5V sent to it).

Single channel Relay Module Application:

  1. motor
  2. solenoid valves
  3. AC loads

5V Single channel relay Features:

  1. Control Voltage: 4V ~ 6V
  2. Working current: 72mA
  3. Low level trigger voltage: GND
  4. High level trigger voltage: VCC
  5. Trigger current: 0.5mA
  6. Output Voltage: 250Vac , 30VDC
  7. Output Current: 10A
  8. the trigger signal: high and low level signals
  9. Installation: 3mm

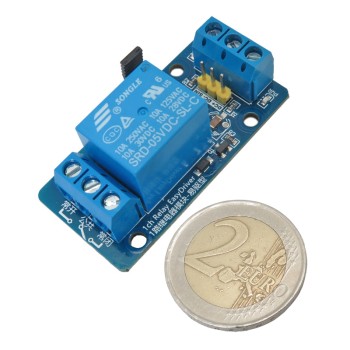

  10. Size: 50mm x 24mm x 17mm

    Relay outputs:
    NO: normally open relay interface
    COM: Common Interface Relays
    NC: normally closed relay interface

    Module interface:
    DC+: positive power supply (VCC)
    DC-: negative power supply (GND)
    IN: can be high or low-level control relay


  1. Relay module arduino link

Package Include:
10 x 5V 1Channel Relay Module

Electrical Parameters
Channels Single Channel
Output Current 10A
Output Voltage 250Vac , 30VDC
Working Current 72mA
Control Voltage 4V ~ 6V
Trigger Current 0.5mA
Trigger Voltage GND (Low Level) , VCC (High Level)
Physical Parameters
Size 50mm x 24mm x 17mm
