2 Channel OMRON Solid State Relay Module [5V] [2A]

Product Code:SQ2839
Availability: In Stock

$3.50
Ex Tax:$3.50

This product has a minimum quantity of 4

Qty +
-

0 reviews / Write a review

Tags: 5V Relay, 2 Channel Relay, 2A Relay, SSR Relay, Solid State Relay, OMRON Relay

Description:

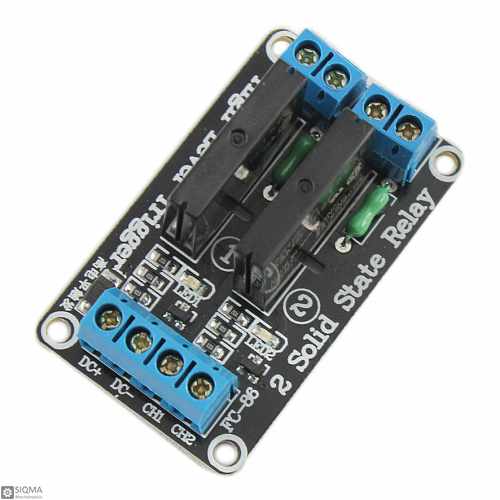

A two-channel relay module featuring 2x Omron G3MB-202P solid state relays. This module is capable of switching AC voltages between 100 and 240V at up to a 2A current. The module can be controlled from a 5V digital source such as an Arduino microcontroller. A resistive type fuse is provided on the module to help protect excessive current draw.

Features:
Channel: 2 Channel
Control Voltage: 5V
Working Current: 26.8mA (Max)
Trigger Voltage: 0 ~ 2.5V (Low level)
Trigger Current: 2mA

Output Rating
Rated load voltage: 100V ~ 240V AC
Load current: 0.10A ~ 2A
Surge current: 30A (60 Hz, 1 cycle)
Size: 55mm x 33mm x 25mm

Package Include:
1 x Solid State Relay Module

Electrical Parameters
Channels	2 Channel
Output Current	0.10A ~ 2A
Output Voltage	100V ~ 240V (ac)
Working Current	26.8mA (Max)
Control Voltage	5V
Trigger Current	2mA
Trigger Voltage	0 ~ 2.5V (Low level) , 3.3V ~ 5V (High level)
Physical Parameters
Size	55mm x 33mm x 25mm
