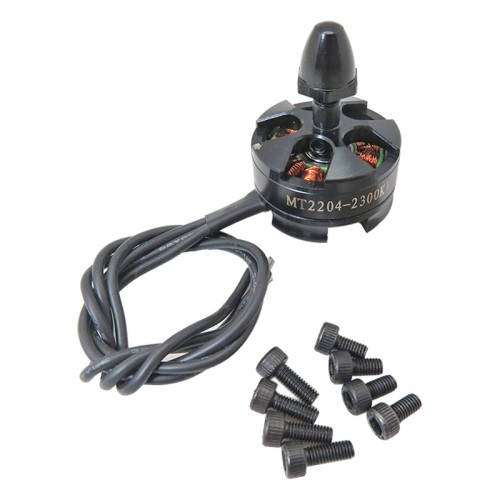

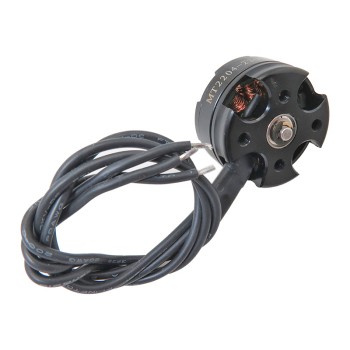

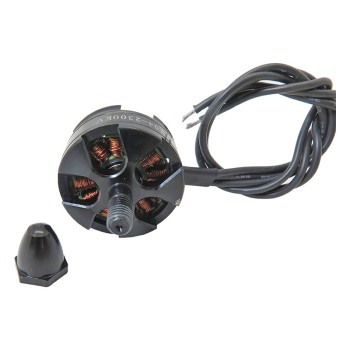

MT2204 KV2300 Brushless Motor Suitable for Mini Quadcopter (right round)

Brushless motors are actually synchronous electric motors that operate using electrical energy. in a brushless motor, the core of the motor is fixed, and the casing rotates. therefore, brushless motors do not require brushes and have significantly higher efficiency and longevity. in a brushless motor, there are magnets that derive their power from direct electric current, causing the rotor to spin inside the stator. on the other hand, a brushless motor uses a step controller instead of brushes and a commutator. this controller creates rotation, resulting in the conversion of electrical energy to mechanical energy. brushless motors are more efficient than brushed motors in converting electricity to mechanical power. this improvement is largely due to the motor speed being defined by the frequency that is switched, not the voltage. higher efficiency is a result of the absence of brushes and consequently reduced friction losses. many tasks can essentially be performed by brushless dc motors. however, their cost and complex control hinder the replacement of brushed motors with brushless ones. the emax MT2204-FW Brushless motor is designed for quadcopters and multicopters (ccw) for small unmanned aerial vehicles sized 250, aimed at aggressive and high-speed flights. this small yet powerful brushless motor is specifically designed for 5-6 inch propellers (dual-blade or tri-blade) suitable for fast flight. this motor is an excellent choice for 250 speed racing class unmanned aerial vehicles equipped with an fpv system. this motor features 14 poles, 12 slots, and a high-torque motor with a heatsink and cnc 6061 t6 aluminum billet. features such as large rpm abec5 bearings and precisely balanced rotor make this brushless motor very reliable even at its maximum speed.

Application of Mini quadcopter motor right round:

1. transportation (drones)
2. heating and cooling
3. industrial engineering
4. motion control systems
5. position stabilization and actuation systems
6. model engineering

Specifications of MT2204 KV2300 brushless motor:

1. motor type: clockwise
2. maximum thrust: 440 g
3. battery cell count: 2s-3s
4. structural framework: 12n14p
5. propeller size: 5"~6" inches
6. length: 32.2 millimeters
7. diameter: 27.9 millimeters
