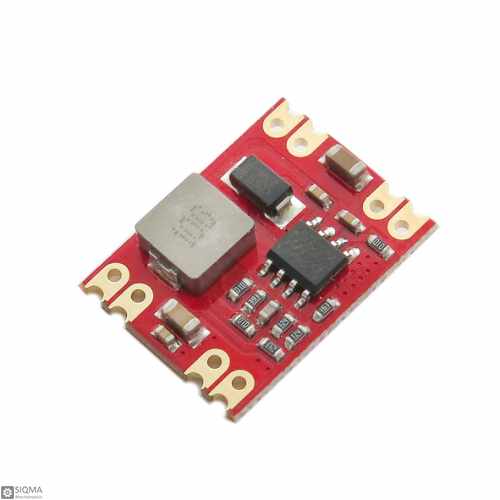

DC-DC MP1584EN 5V 3A Step Down Module

DC-DC MP1584EN 5V 3A Step Down Module
  • Product Code:SQ3641
  • Availability: In Stock
  • $1.01
  • Ex Tax:$1.01
This product has a minimum quantity of 5

Tags: DC-DC, Power Converter Module, 5V Output, MP1584EN

Input voltage: 5.5V~27V
Output voltage: 5V
Output current: up to 3A
Conversion efficiency: 95%
Output ripple: <20uA
Output accuracy: ±0.01V
Working temperature: -40 C ~ 85 C
Relative humidity: 20-90%
Size: 22.3mm * 17mm * 4.2mm (length * width * height)
Inductance thickness: 3mm
PCB thickness: 1.2mm or 1.6mm (the thicker the thickness, the smaller the interference)
PCB layer number: 2 layers
Shutdown current: not turn off
Cooling method: natural cooling
Installation method: patch, or 2.54 pin header
Production process: reflow soldering

Package Include:
1x Buck Module

Electrical Parameters
Input Voltage DC 5.5-27V
Output Current 3A
Output Voltage DC 5V
