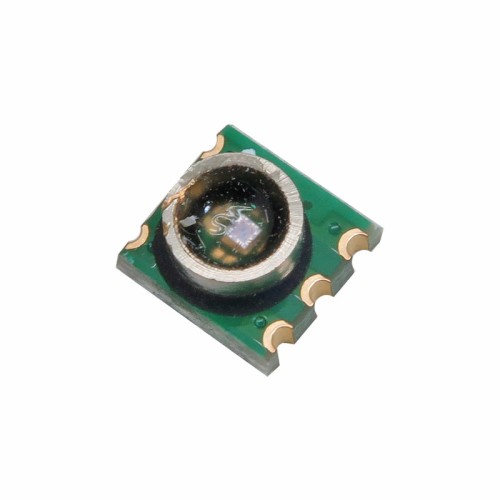

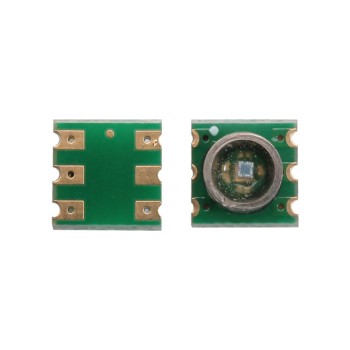

MD-PS002 Air pressure sensor module

the md-ps002 air pressure sensor module is designed based on the md-ps001 sensor and can be said to be a breakout board for this sensor to make access and setup of this module easier. a thin layer of protective material is applied over this sensor for better performance. the use of this product in air compressors, automotive electronics, and other fields that require high efficiency for sensors is easier. the power supply voltage for this sensor ranges from 3 to 12 volts, with a recommended voltage of 5 volts by the manufacturer, and its sensitivity range goes up to 3500 kpa.

application of the MD-PS002 Analog Air Pressure Sensor:

1. measurement of smoke and vapor pressure
2. industrial
3. medical

specifications MD-PS002 sensor:

1. sensor type: air pressure
2. output type: analog
3. measuring range: 100kpa ~ 3500kpa

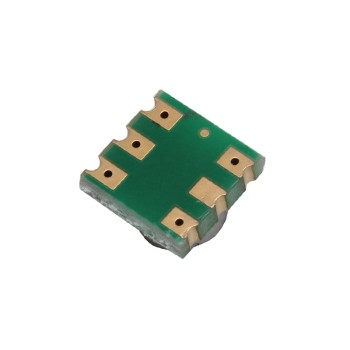

4. number of pins: 6
5. supply voltage: 3vdc ~ 12vdc
6. operating temperature: -40°c ~ 125°c

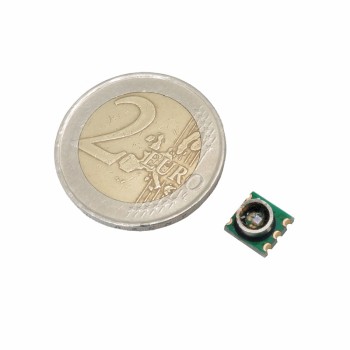

7. size: 6.8mm x 6.8mm

Documents:

datasheet for sensor md-ps002
