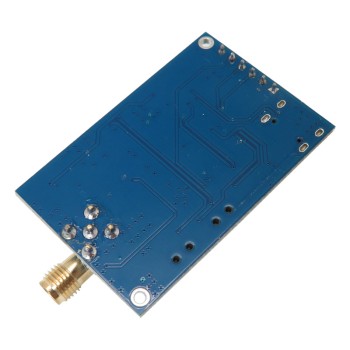

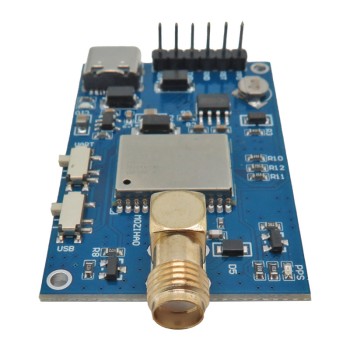

LC29H Positioning Module

The lc29h positioning module simultaneously receives and processes signals from all constellations (gps, glonass, beidou, galileo, and qzss), maximizing satellite signal accessibility in conjunction with sbas support. this module supports the reception of dual-band l1 and l5 signals, thereby ensuring that terminals can accelerate convergence time, improve positioning accuracy, and achieve rapid response times even when the signal is interrupted. the dual-band design significantly reduces the multipath effect experienced near tall buildings or in deep urban valleys, providing reliable positioning performance. additionally, some versions come equipped with 6-axis imu sensors (3-axis accelerometer + 3-axis gyroscope) and integrate rtk and dr positioning algorithms, enabling accurate positioning at the level of continuous line scenarios where satellite signals are partially or completely blocked, such as in underground parking lots, tunnels, urban valleys, or forests. once the satellite signal is regained, the lc29h combines sensor data with gnss signals, and integrated navigation can provide rapid convergence times and centimeter-level positioning accuracy. to enhance performance when used with passive antennas, the lc29h features an internal lna and an internal saw filter, ensuring high sensitivity and excellent positioning accuracy.

1. vehicle and personal tracking devices
2. positioning equipment
3. portable digital devices

1. operating temperature: -40 degrees celsius to +85 degrees celsius
2. storage temperature: -40 degrees celsius to +90 degrees celsius
3. supported bands: gps/qzss: l1 c/a, l5
4. glonass: l1
5. galileo: e1, e5a
6. bds: b1i, b2a
7. default gnss constellation: gps + glonass + galileo + bds + qzss
8. simultaneous gnss number: 4 + qzss
9. sbas: waas, egnos, msas, and gagan
10. speed accuracy: 0.2 meters per second
11. 1pps signal accuracy: 20 ns
12. ttff (with agnss) cold start: 5 seconds
13. ttff (without agnss)
14. acquisition sensitivity: -147 dbm
15. tracking sensitivity: -165 dbm
16. reacquisition sensitivity: -159 dbm
17. maximum altitude: 10,000 meters
18. maximum speed: 500 meters per second
19. maximum acceleration: 4 g
20. navigation update rate: 1-10 hz
21. gnss raw data update rate: 1 hz
22. i2c up to 400 kilobits per second
23. adjustable uart: 9600–3000000 bps
24. default: 115200 bps
25. nmea 0183/rtcm 3.x protocol
26. power supply voltage range: 3.1–3.6 volts, 3.3 v type
27. input/output voltage type: 2.8 v
28. power-saving mode: 25 µa
