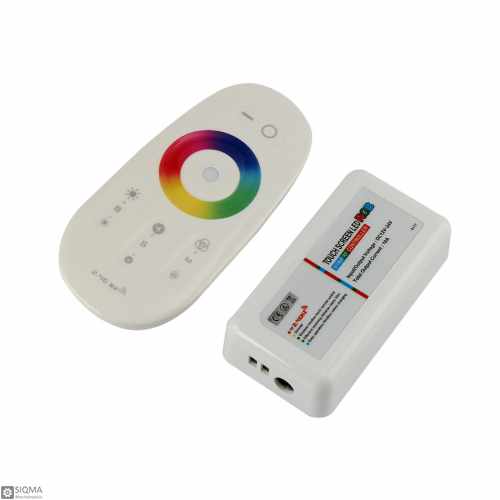

Wireless RGB Multi Color LED Controller [2.4GHz] [12V-24V]

Wireless RGB Multi Color LED Controller [2.4GHz] [12V-24V]
  • Product Code: SQ3165
  • Availability: In Stock
  • $5.40
  •
  • Ex Tax: $5.40
This product has a minimum quantity of 2
+
-


Tags: LED Dimmer, Wireless LED Controller, RGB Controller, LED Remote Control

Description:
Wireless RGB Multi-Color LED Controller (LED Remote Controller) [2.4GHz] [12V-24V] is an LED wireless remote controller, which is based on modern PWM control technology, to control any RGBW LED lighting projects. This technology advantages a high-efficiency touch remote controller with just four connections terminal  (common cathode) to achieve 65-kilo colors and 20 optional steps, which are automatically can be changed. This controller has an internal backup battery, to save last configuration data, for resuming it after power cutting off. This wireless controller is a 2.4GHz (Wif-Fi band) high frequency, with low power consumption, long-distance range, good anti-interference capability, quick telecommunication, and so on. This dimmer with changing brightness and color level can create elegant and stylish scenes by LED lighting for exciting parties and festivals. This module set can widely be used in an LED RGBW strip light, LED module and so on.

Features:
Input voltage: 12V ~ 24V
Frequency: 2.4GHz
Modulation: GFSK
Control way: RGBW Four channels
MAX load current: 6A (Per Channel)
Connection mode: common anode
Controller battery: 2Pcs x AAA battery (not included)
Control distance: 30m
Programs:20 kinds
Material: ABS
Remote Size: 110mm x 52mm x 20mm
Controller Size: 85mm x 45mm x 23mm

Package Include:
1 x LED RGB controller
1 x 2.4G RF remote control (batteries not included)

Wireless Parameters
Modulation GFSK
Frequency 2.4GHz
Transmission Distance 30m
Electrical Parameters
Input Voltage 12V ~ 24V
Output Current 6A (Per Channel)
Physical Parameters
Size (Remote Size) 110mm x 52mm x 20mm , (Controller Size) 85mm x 45mm x 23mm
Material ABS
