L-Shaped Metal Bracket 895 Motor

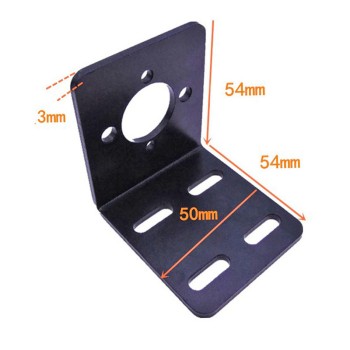

the term "bracket" has various applications and generally refers to types of supports that stabilize objects and serve as a base. the Iron bracket for 895 engine is l-shaped, with a thickness of 3 mm, and serves as a holder for the 895 motor. in fact, this metal bracket can be used to hold dc motors of model 895. dc motors 895 are mainly used as spindles for cnc machines. the iron bracket for motor 895 has a thickness of 3 mm, a width of 50 mm, and a height of 54 mm. to secure the motor onto the bracket, two m5 screws are used, and along with this bracket, two screws for motor installation are provided. however, if necessary, you can obtain two m4 screws to hold the motor more securely.

application of L-shaped metal bracket 895 motor:

1. motor 895

specifications of 895 bracket5:

1. thickness: 3 mm
2. width of the item: 50 mm
3. height of the item: 54 mm
4. two m4 screw holes
5. two m5 screw holes
