IlI9341 Full Color TFT Touch Display Module [2.4 inch] [320x240 Pixel]

IlI9341 Full Color TFT Touch Display Module [2.4 inch] [320x240 Pixel]
  • Product Code:SQ6002
  • Availability: In Stock
  • $5.90
  •
  • Ex Tax:$5.90
This product has a minimum quantity of 2
+
-


Tags: TFT Display, Full Color Display, SPI Display, Touch Screen

Description:
The Ili9341 full color TFT display module is an SPI protocol based display with a resolution of 320 x240 pixels and 2.4 inch size. It is a TFT LCD touch Screen which works by a pen and displays up to 262,000 different colors. This LCD module is portrait mode with brightness up to 500 Cd/m2 (typical value), if you would like to use landscape mode, you need to use some tricks or use technical support.
The TFT Display communicates with the micro controllers over SPI protocol, so you need to connect it to the SPI pins of the Arduino. Before connecting it directly to the 5v logic level of the Arduino, ensure that has a voltage regulator. Because the display may be destroyed if the version of the display you have does not have the regulator. If the display does not have a voltage regulator, you can use any logic level converter between the display and the Arduino

Features:
Type: TFT

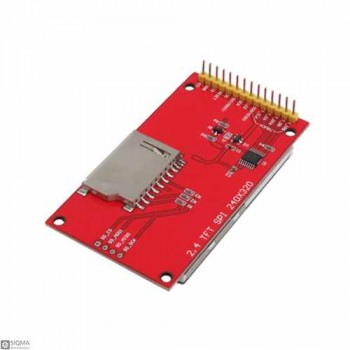

Driver IC: ILI9341 With PCB plate (including power supply IC, SD), with 5110
Input Voltage: 3.3V ~ 5V
Color: Full Color (64K color), 262K/65K
Screen Size: 2.4 inch
Resolution: 320x240 Pixel
Interface: 4-wire SPI
Temperature:  -20°C ~ +70°C
Display area: 36.72mm x 48.96mm
PCB Size: 77.18mm x 42.72mm

Package Include:

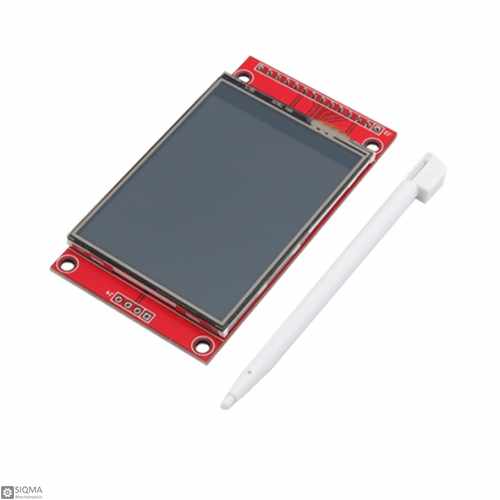

1 x ILI9341 2.4 Inch TFT LCD Module
1 x Pen

Display Properties
Color Full Color (64K color)
Resolution 320x240 Pixel
Screen Size 2.4 inch (36.72mm x 48.96mm)
Type TFT
Interfaces
Interface Type 4-wire SPI
Electrical Parameters
Input Voltage 3.3V ~ 5V
Physical Parameters
Operating Temperature -20°C ~ +70°C
Size 77.18mm x 42.72mm
Environmental Conditions and Safety
Operating Temprature  -20℃ to +70℃
Storage temprature -30℃ to +80℃
