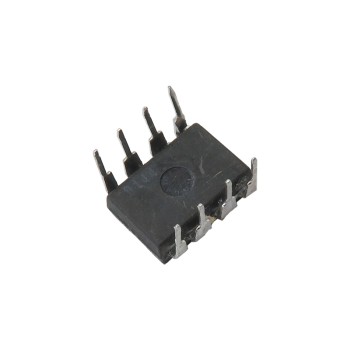

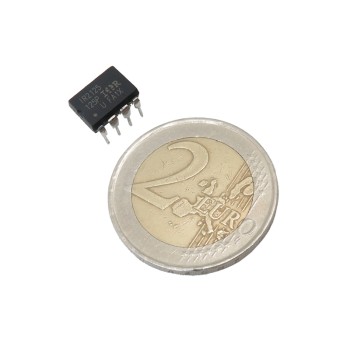

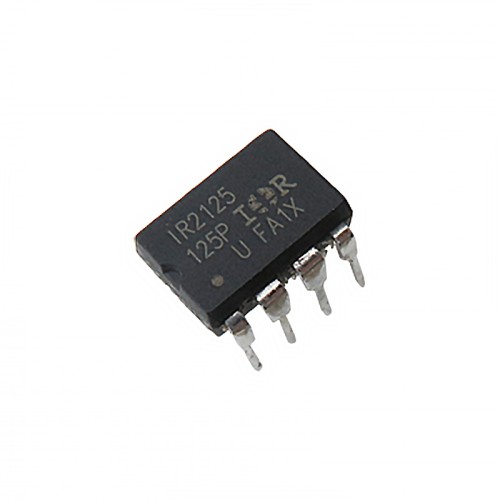

IR2125 MOSFET and IGBT Driver IC

the ir2125 gate driver is an ic driver for mosfets and igbts that is used for n-channel mosfets. it limits the current when the gate input current increases and is compatible with standard cmos and lsttl logic inputs. the driver output has a high amplitude pulse current buffer and detects overcurrent protection, limiting the gate voltage, with a maximum rated voltage of 500 volts for driving n-channel mosfets. this ic driver for mosfets and igbts is the ir2125 model and has 8 pins in a dip format.

application of ir2125 driver ic:

1. mosfet driver
2. igbt driver

specifications IR2125 MOSFET and IGBT Driver IC:

1. offset voltage: up to 500 volts max
2. positive and negative output current: 1 and 2 amperes
3. output voltage: 12 to 18 volts
4. gate type: igbt, n-channel mosfet
5. power supply voltage: 0v ~ 18v
6. input type: polarity compatible
7. high and low input voltage levels: 0.8v, 2.2v
8. lockout due to low voltage
9. current detection and limiting
10. ic package: 8-pin dip

Documents:

datasheet IR2125 IC
