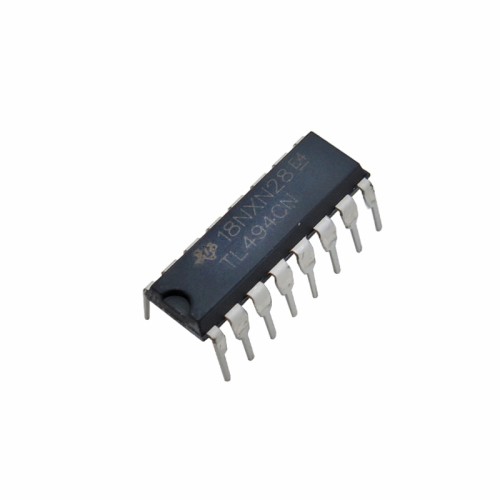

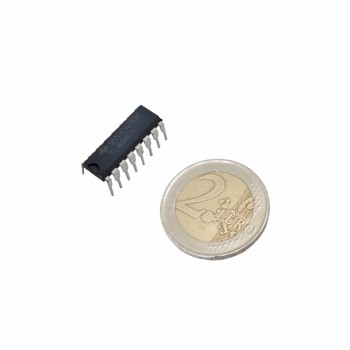

IC TL494CN DIP16 package

the IC TL494 is a pulse width modulation (pwm) controller with a fixed frequency that includes all the necessary components for generating a pwm wave. using this ic, you can easily create a pwm wave with your desired specifications and use it for various purposes. this ic comes in a dip16 package and consists of two comparators, a regulator, and an adjustable oscillator.

application of IC TL494CN DIP16 package:

1. motor speed control
2. switching power supplies
3. desktop monitors
4. microwave ovens
5. small solar inverters
6. smoke detectors

specifications of ic tl494cn:

1. output voltage: 40 volts (maximum)
2. output current: 200 milliamperes (maximum)
3. switching frequency: 300 kilohertz
4. duty cycle: 45%
5. rise time: 100 nanoseconds
6. fall time: 40 nanoseconds
7. operating temperature range: 0 to 70 degrees celsius

Documents:

TL494CN datasheet
