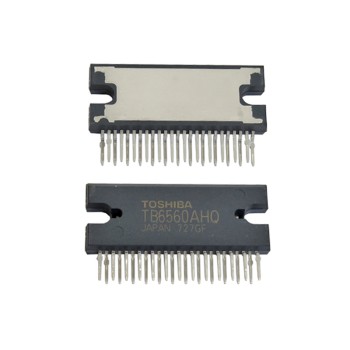

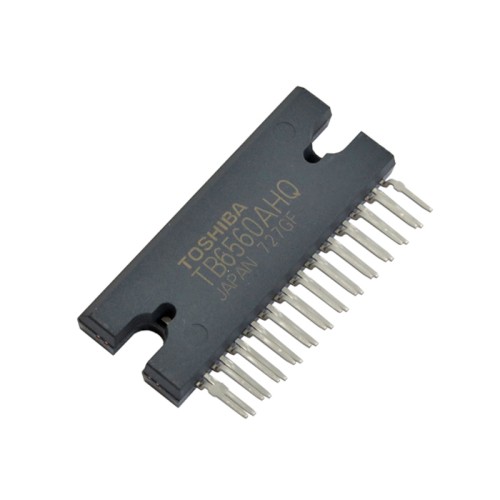

TB6560AHQ Driver IC
- Product Code:SQ8011
- Availability: 1000
- $2.70
- Ex Tax:$2.70
Tags: driver, ic driver tb6560ahq, ic driver, IC TB6560AHQ
the tb6560ahq ic is classified as a driver controller ic for motors. this ic is a product of the toshiba brand and is designed for operating stepper motors while also performing functions such as driving, powering, and control. the output configuration of this ic consists of 4 half-bridges, and the user interface of this driver controller is parallel. the manufacturing technology of the tb6560ahq driver ic is power mosfet, and it has an output current of 3 amps. the tb6560ahq stepper motor driver is designed for stepper motors up to 3 amps of current, and it is very easy to use. the tb6560ahq ic is a driver chip for bipolar stepper motors, designed for controlling motors that require unipolar and bipolar configurations. the tb6560ahq driver ic has low vibration but has the capability to perform well in both clockwise and counterclockwise rotation.
application of TB6560AHQ controller IC:
- bipolar stepper motor driver
- unipolar stepper motor driver
specifications of TB6560AHQ Stepper Motor Driver:
- bipolar motor driver
- h-bridge structure
- double output current: 3 amps
- maximum current: 3.5 amps
- power supply voltage: 5.5 ~ 4.5 volts
- maximum voltage 40 volts
- typical output voltage: 34 volts
- motor steps: 1/2, 1/8, 1/16
- ability to start the motor in both forward and reverse rotation
- packaging: hzip25-p-1.27
- includes internal pull-up and pull-down resistors: 100 kilohms
