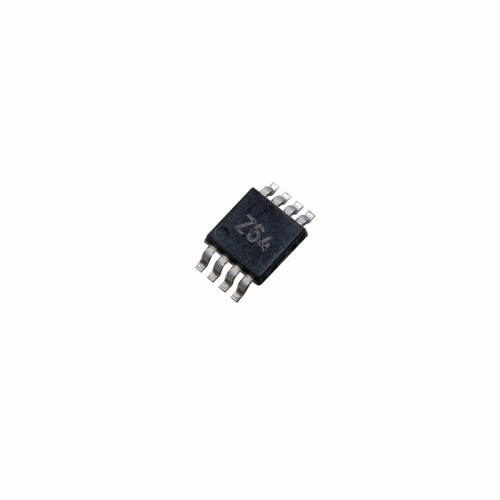

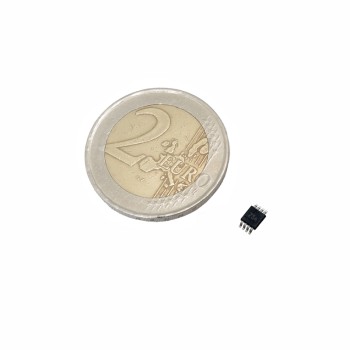

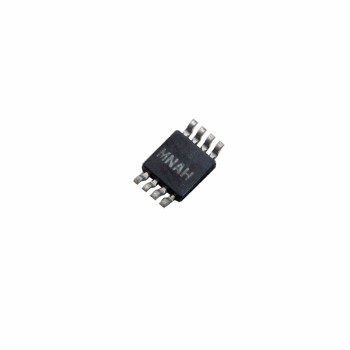

IC LM4864 Z64 SOP-8 package

The LM4864 Z64 IC is a single-channel audio amplifier chip that has high-quality output audio and is suitable for use in high-quality audio circuits and modules. Given that the LM4864 IC does not require much hardware, this audio amplifier is used in low-power portable applications, and its audio gain can be controlled using gain-setting resistors, maintaining a stable gain. This IC has several features, including an internal thermal protection circuit that can turn off the IC.

Application of IC LM4864 Z64:

1. Audio equipment, computers
2. Electronic circuits
3. Telephones

Specifications of IC LM4864 Z64:

1. Output power: 725 milliwatts
2. Amplifier class: AB
3. Number of channels: one
4. Supply voltage range: 5.5 ~ 2.7 volts
5. Number of pins: 8
6. Load impedance: 8 ohms
7. Minimum operating temperature: -40 degrees Celsius
8. Maximum operating temperature: 85 degrees Celsius

Documents:

Datasheet LM4864 Z64
