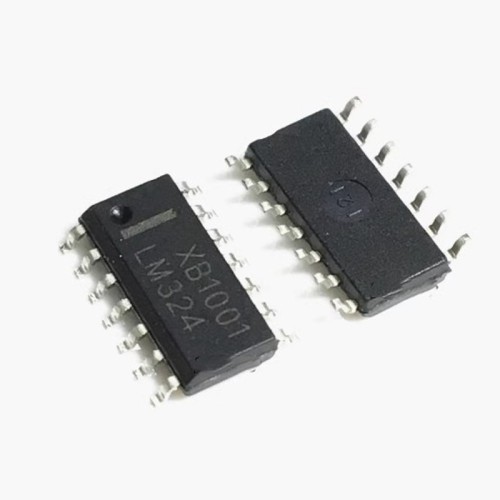

LM324 Op Amp IC SOP14 Package

the IC LM324 is a 14-pin integrated circuit. this ic contains 4 operational amplifiers (op-amps) within it, so that in circuits that require a large number of operational amplifiers, using the lm324 significantly prevents the circuit from becoming large and complex. the lm324 ic has high gain. its design is such that it operates with a single-type power supply. its power supply voltage range is wide, from 3 to 32 volts. in amplifier converters, dc amplifier modules, and all op-amp circuits that operate with a +5v supply, this series of ics can be used.

application of LM324 Op Amp IC SOP14 Package:

1. buffering or amplifying signals
2. usage in circuits
3. usage in converters and amplifiers, dc amplification modules, and all op-amp circuits

specifications of the LM324 Op Amp IC:

1. short-circuit protected outputs
2. input voltage range: 3 to 32 volts
3. input current per pin: 100 nanoamps
4. contains 4 operational amplifiers
5. packaging: sop-14
6. self-correcting property against noise

Documents:

datasheet for LM324 Op Amp
