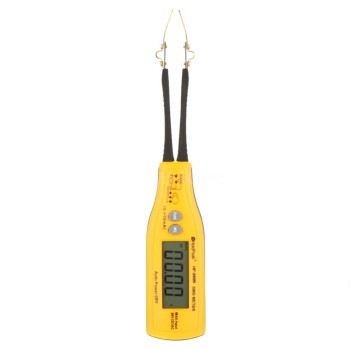

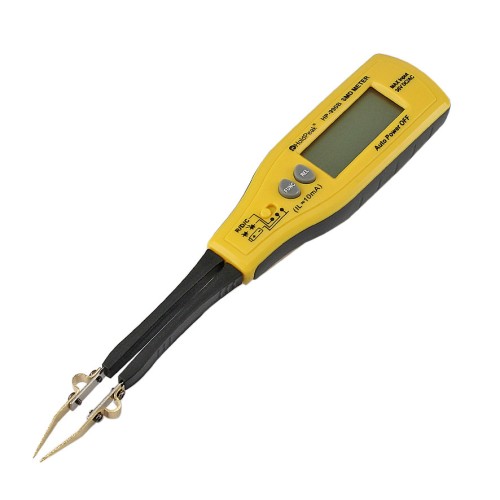

HP990B SMD Tester Clamp Multimeter

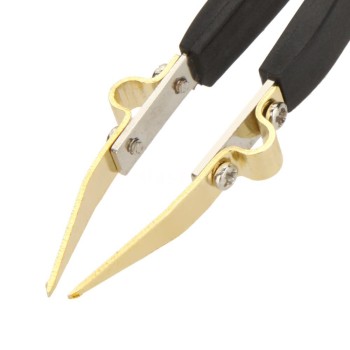

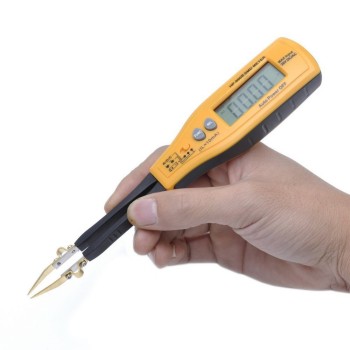

The HP990B Pen-type SMD Tester, featuring two needle clips and the ability to connect probes to these clips, is used for testing and evaluating small components and SMDs. The pen-type tip of this multimeter allows for easier and more convenient testing of SMD boards.

This HP990B HoldPeak Multimeter is a product of HoldPeak and can automatically adjust its range. To save battery life and prolong its usage, it automatically powers off after a few minutes of inactivity.

Additionally, the HP990B SMD Tester Clamp Multimeter and HP990B HoldPeak SMD Clamp Multimeter models are available for more versatile testing needs.

Applications of the HP990B SMD Tester Clamp Multimeter

1. Computer motherboard repair
2. Electronics projects
3. SMD component testing and evaluation
4. SMD board repairing
5. Computers reworking

Specifications of the HP990B SMD Tester Clamp Multimeter

1. Resistance Measurement Range: 400Ω ~ 40MΩ
2. Capacitance Measurement Range: 4nF ~ 200uF
3. Display: 4000 counts
4. Auto Range Select
5. Battery Test
6. Diode Test: Open Voltage: 1.5V, Testing Current: 2mA
7. Continuity Buzzer: Sounds when resistance is less than approx. 30Ω
8. Zener/LED Test: Open Voltage > DC 20V
9. Relative Value
10. Auto Power Off
11. Battery Power: Loading Current: Approx. 10mA ±1.5%
12. Power Supply: 2 x 1.5V AAA batteries (not included)

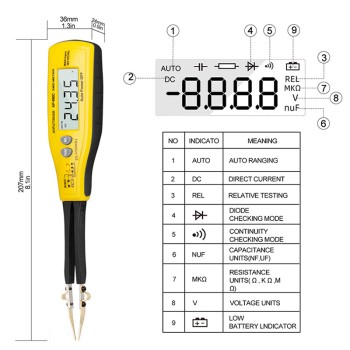

13. Dimensions: 207 x 36 x 24mm
14. Product Weight: 50g
15. Package Size: 21 x 6 x 4cm / 8.2 x 2.5 x 1.4in
16. Package Weight: 187g / 6.6oz

Features of the HP990B SMD Tester Clamp Multimeter

1. Automatic range selection
2. Diode and Zener testing
3. Auto power off after a few minutes of inactivity

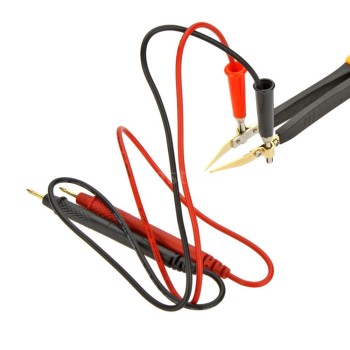

4. Probe connection to the pen-type tip
5. Continuity testing (detects open or short circuits)

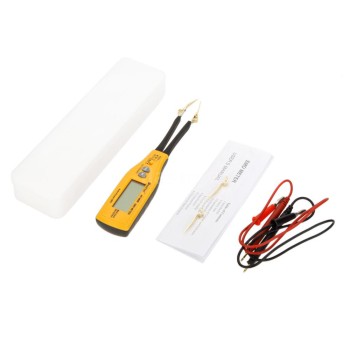

Items included with the HP990B SMD Tester Clamp Multimeter

1. SMD Tester
2. English manual
3. Case
4. Replacement probe pins
