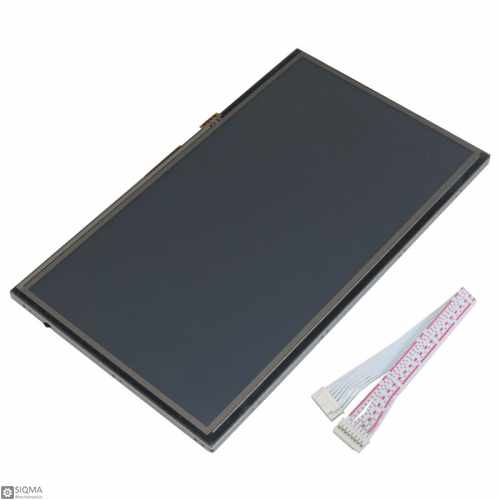

Full Color TFT Display Module With FPGA and RTC 10.1 inch, 1024x600 Pixel

Full Color TFT Display Module With FPGA and RTC 10.1 inch, 1024x600 Pixel
Click image for Gallery
  • Product Code:SQ6602
  • Availability: 10000
  • $70.60
  •
  • Ex Tax:$70.60
+
-

0 reviews / Write a review

Tags: TFT Display, Full Color Display, 10inch TFT display module

Description:

Full Color TFT Display Module With FPGA And RTC [10.1 inches] [1024x600 Pixel] is high quality and definition, full color, 10.1 inches TFT LCD with a resistive touch panel that has Cortex-M3 + dual-core FPGA and RTC. This FPGA is a programmable logic component that can process in parallel based on internal saved instructions with high speed to fastly drive a TFT display with high resolution up to 1440x990 pixels. So the display can operate without an operating system, it can directly by power on and continuously display every time. In fact, this display is a standalone display that can work alonely for a continuous long time, too. This display is utilized for displaying a specified internal data which is processed by internal FPGA. This TFT LCD is equipped with Nandflash's data reading, SDRAM writing and RGB output beside the FPGA with same clock pulse to fast response time for refreshing the output data.
This LCD features 65K color, 16-bit RGB full color, 1024x600 pixels resolution, 1Gbit configuration memory, and adjustable backlight that can be supplied with 5 ± 0.2V DC, 723mA at on backlight or 199mA at off backlight mode. Also, this LCD can communicate with other computer or development board trough the RS232/TTL interface. The firmware of this screen can be refreshed or upgraded trough the SD memory. An internal 8x12, 8x16, 12x24, 16x32, and 32x64 ASCII character, 12x12, 16x16, and 24x24 GBK, 32x32 and 64x64 GB2312, and other fonts are embedded in this module, so it can support text, BMP, JPEG, WMF, PNG, and GIF image formats with configuration controls of the button controls, text controls, drop-down control, progress bar control, instrument control, curve control, slider control, select a control, icon view, animation, clock controls, and controls and other two-dimensional code.

1024x600 TFT display module Application:

  1. Medical and beauty equipment
  2. Engineering machinery and equipment for vehicles
  3. Electronic instrument
  4. Industrial Control System
  5. The Electric Power Industry
  6. Civil Electronic Equipment
  7. Automation equipment
  8. The traffic
  9. New energy project

1024x600 TFT display module Features:

  1. Type: TFT
  2. Core processor: Cortex-M3, high-speed FPGA
  3. Touch Type: Resistive touch screen
  4. Input Voltage: 5V
  5. Color: Full Color (64K color)
  6. Screen Size: 10.1 inch
  7. Resolution: 1024x600 Pixel
  8. Storage: 1Gbit
  9. Interface: RS232 / TTL
  10. Temperature: -10°C ~ +60°C
  11. Display area: 222mm x 125mm
  12. PCB Size: 236mm x 143.4mm x 13.4mm

Document:

  1. 10inch TFT display module FPGA Control board Link
Display Properties
Color Full Color (64K color)
Resolution 1024x600 Pixel
Screen Size 10.1 inch (222mm x 125mm)
Type TFT
Touch Type Resistive touch screen
Interfaces
Interface Type RS232 / TTL
Electrical Parameters
Input Voltage 5V
Board Parameters
CPU Cortex-M3 , high-speed FPGA
Physical Parameters
Operating Temperature -10°C ~ +60°C
Size 236mm x 143.4mm x 13.4mm
