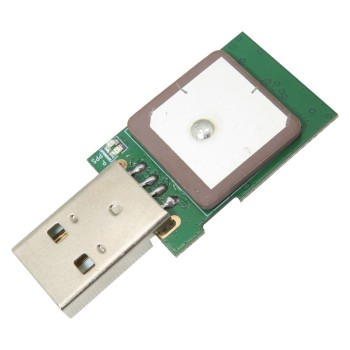

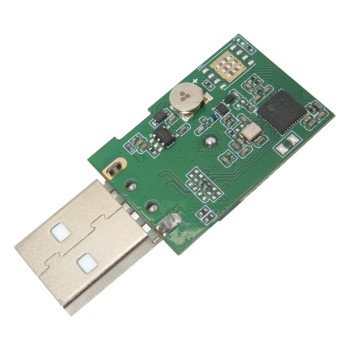

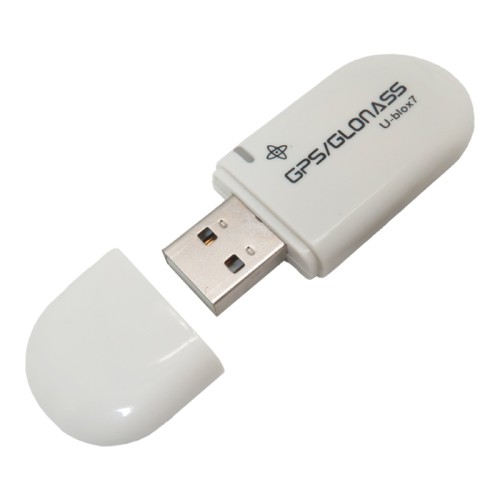

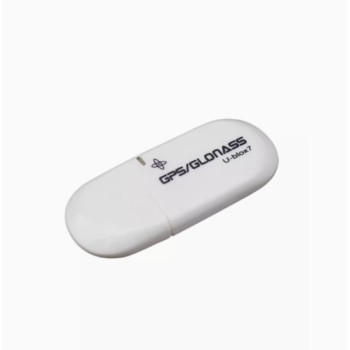

GMOUSE GPS Navigation Module with USB

The VK-172 Gmouse GPS module is an external navigator. this module supports both gps and glonass satellite systems, which enhances its accuracy and reliability, and it connects to devices via a usb port, making it compatible with a wide range of devices including laptops, desktops, and single-board computers like the raspberry pi.

How to use:

to use the vk-172 gmouse usb gps/glonass module, you typically need to install the appropriate drivers for your operating system. here are the general steps to get started: connect the module: plug the vk-172 into your computer's usb port. install drivers: download and install the necessary drivers. for windows, these are usually available from the manufacturer's website or can be automatically identified by windows update. for linux and macos, drivers may be internal or available through package managers. configure software: use gps software to interact with the module. this can be mapping software, navigation software, or terminal software to view raw nmea data. check that the module is receiving satellite signals and providing location data.

Application of vk-172 positioning module:

1. car navigation
2. personal positioning
3. geocaching
4. data logging

Specifications of the GMOUSE routing module:

1. chipset: u-blox 7 or 8
2. cold start time: approximately 29 seconds
3. warm start time: approximately 28 seconds
4. hot start time: approximately 1 second
5. position accuracy: 2.5 meters cep
6. update rate: 1 hz
7. antenna: high-gain internal antenna
8. power supply: 5 volts
9. operating system compatibility: compatible with windows, linux, and macos

Documents:

Application VK-172-module
