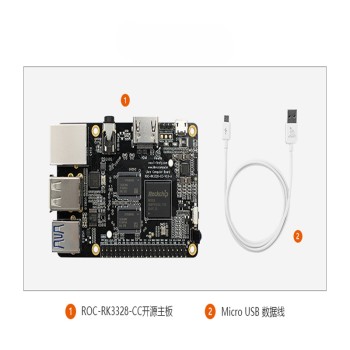

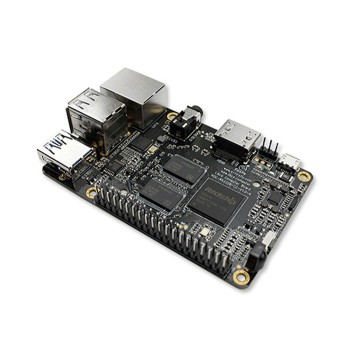

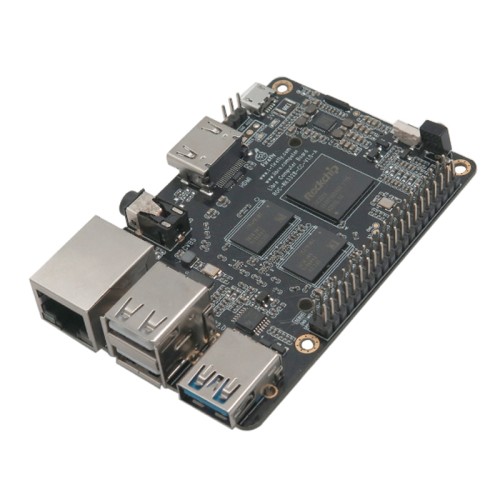

Firefly ROC-RK3328-CC Single Board

The 64-bit RK3328 Board from Firefly features a powerful 4-core processor with Cortex-A53, supporting DDR4 memory. This embedded board, branded as 64-bit ROC-RK3328 Board, comes with 1GB of RAM and supports 4K video playback at a maximum sampling frequency of 60 frames per second.

The compatibility of the RK3328 Motherboard with Android, Linux, and Ubuntu operating systems is another key feature, making it easy to use as an Android display or TV box. Additional features of this versatile board include Ethernet, USB 2.0 and USB 3.0 ports, support for eMMC modules, and multiple audio and video ports, further enhancing its user-friendly appeal.

Applications of the 64-bit RK3328 Board

1. Embedded systems
2. Smart systems
3. Electronics projects
4. Software development
5. Gaming
6. DIY electronics
7. Development boards

Specifications of the 64-bit RK3328 Board

1. Brand Name: RK3328
2. Video Decoding: 4K video decoding support
3. Memory Support: DDR4
4. RAM Capacity: 1GB
5. Memory Slot: MicroSD card slot
6. Networking: Ethernet connectivity
7. USB Ports: USB 2.0 and USB 3.0 ports
8. IR Receiver: Infrared receiver module
9. LED Indicators: Power status LED (Blue), User-defined LED (Green)
10. Serial Debugging Port: Serial debugging port

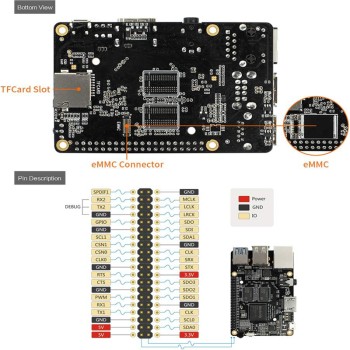

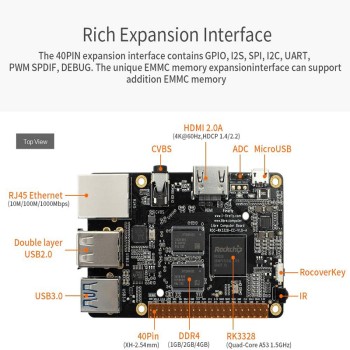

11. Header Pins: 40-pin 2.54mm header
12. Protocols Supported: I2S, SPI, I2Cx2, UARTx2, PWM, SPDIF
13. Power Supply: 5V, 2A via Micro USB
14. Dimensions: 56 x 85 mm
15. SoC: Rockchip RK3328
16. CPU: Quad-Core ARM Cortex-A53 64-bit processor, up to 1.5GHz
17. GPU: ARM Mali-450 MP2 Quad-Core GPU, supports OpenGL ES1.1/2.0, OpenVG1.1
18. VPU: Supports 4K VP9 and 4K 10bit H265/H264 video decoding (up to 60fps), 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding (H.264/H.265), video post-processing features such as de-interlacing, denoising, edge/detail/color optimization
19. Storage: High-Speed eMMC extension interface, MicroSD (TF) Card Slot
20. Ethernet: 10/100/1000Mbps Ethernet
21. 1 x HDMI 2.0 (Type-A), supports maximum 4K@60Hz display
22. 1 x TV out (CVBS), compliant with 480i, 576i standard
23. 1 x SPDIF for audio output
24. 1 x I2S for 8-channel audio
25. 2 x USB 2.0 HOST
26. 1 x USB 3.0 HOST
27. IR Module: 1 x IR Receiver Module (supports self-defined IR remote)
28. 1 x Power Status LED (Blue)
29. 1 x User-defined LED (Green)
30. Button: 1 x Recovery Button
31. Debugging: 1 x Serial Console for debugging
32. 40-pin 2.54mm header
33. Supports I2S, SPI, I2Cx2, UARTx2, PWM, SPDIF interfaces
34. Power Supply: DC5V - 2A (via Micro USB)
35. Size: 56 x 85 mm
