FeelTech FY3200S dual-channel function generator

Function generator is a device that can generate various signals and waves with our desired amplitude and frequency and in various shapes.

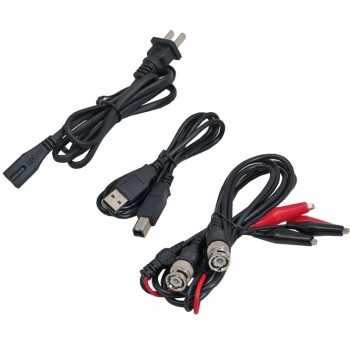

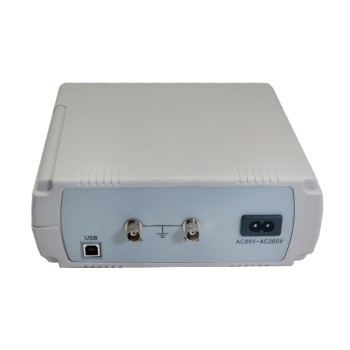

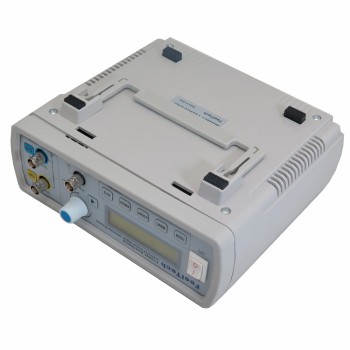

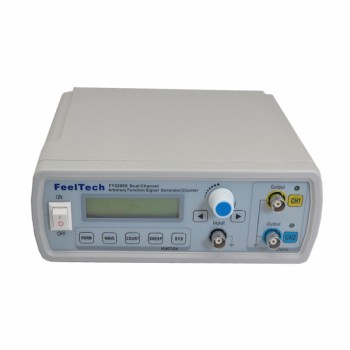

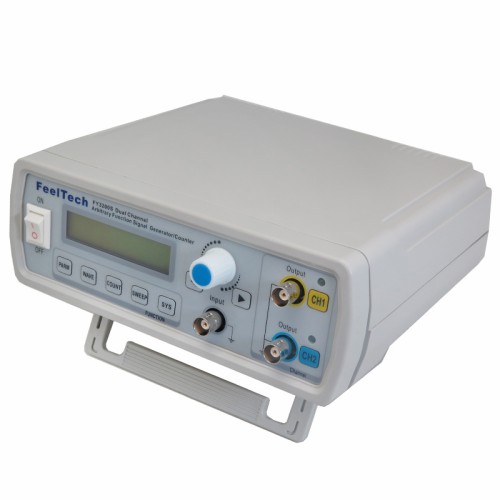

FeelTech FY3200S dual-channel function generator is a set of function signal generator, arbitrary waveform generator, pulse generator and 100MHz frequency meter and other functions in one portable, high-performance, cost-effective, multi-purpose device. Function generator instruments that use large-scale FPGA integrated circuits and high-speed MCU microprocessors.

This instrument has a dual function/output arbitrary waveform can generate sine, square, triangular, sawtooth, pulse wave, Lorentz pulse, multi-sound, random noise, ECG, trapezoidal pulse, Sinclair pulse, narrow pulse, Gaussian white noise, amplitude waveform, dual TTL output frequency modulation waveform, FSK FSK and ASK (pulse width can be precisely adjusted to a different frequency, the pulse width is the same). This product also has linear and logarithmic sweep function, and you can set the scanning frequency range and scanning time. The two channels CH1 and CH2 are fully symmetrical, and each channel parameter can be adjusted independently. The maximum output signal amplitude is up to 20Vpp, supporting the maximum output amplitude of the two-channel power amplifier, the maximum output amplitude is up to 80VPP. FY3200S two output signals can be up to 24MHz. The output signal frequency, amplitude, bias, phase, etc. can be programmed for control (the instrument can visually display the output signal amplitude, phase, waveform and other information parameters to make user operation more convenient).

application of the Function device 2Ch-FY3200S:

1. testing electronic modules
2. troubleshooting
3. telecommunication systems

specifications of the FY3200S Generator Function:

1. sampling frequency: 250 ms/s
2. resolution: 12 bits
3. frequency: 24 mhz
4. frequency resolution: 0.01 hz
5. output impedance: 5 ohms
6. sine wave distortion: 0.8 percent
7. linear triangle linearity: over 98 percent
8. duty cycle adjustment: 0.1 to 99.9 percent
9. dc offset settings: ±10.0 v
10. sweep speed: 1 s to 999 s
11. rise and fall time: less than 10 nanoseconds
12. ttl output at high: 3.3 volts
13. power supply: 85 vac to 260 vac
14. serial communications
15. dimensions: 200 x 190 x 90 mm

Documents:

datasheet function fy3200s-24mhz
