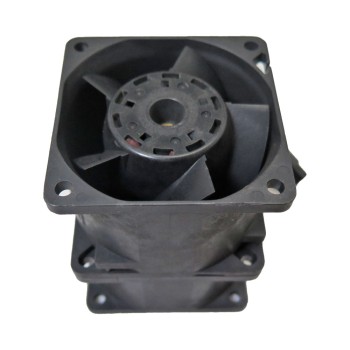

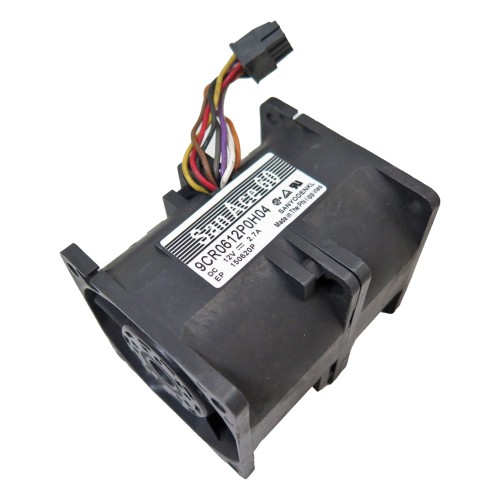

SANYO DENKI 12V Dual High-Speed Fan

The SANYODENKI High-Speed 12V, 48W Fan features a unique and innovative design with two brushless motors and fans. This SANYODENKI Dual High-Speed 12V, 48W Fan is equipped with two separate fans running at different speeds, each supported by four high-speed ball bearings. The fan blades are arranged in a counter-rotating configuration to generate sufficient pressure for optimal airflow.

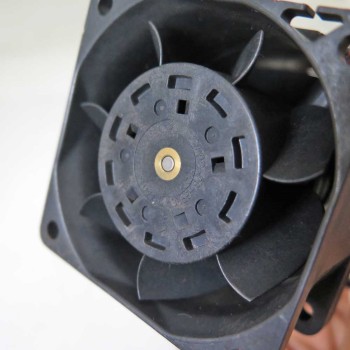

Inside the SANYODENKI Fan, there are two sets of blades—one with 7 blades and another with 5 blades. When the turbine starts spinning, the 7-blade fan initially rotates at 16,000 RPM, followed by the 5-blade fan, which kicks in as the air pressure builds and can reach speeds up to 12,000 RPM.

This design makes the Dual High-Speed 12V, 48W Fan a highly efficient cooling solution, combining the performance of the SANYODENKI Dual 12V Fan with advanced engineering by SANYODENKI.

Applications:

1. Server Cooling
2. Switching Power Supplies
3. Telecommunications Equipment

Specifications:

1. Speed: Over 16,000 RPM
2. Air pressure: 2.5 kpa
3. Dimensions: 60mm x 60mm, Length: 76mm
4. Weight: Approximately 236 grams
5. Motor operating voltage: 10.8 to 13 V
6. Motor rated current: 2.7 A

Documents:

SANYODENKI Fan Datasheet
