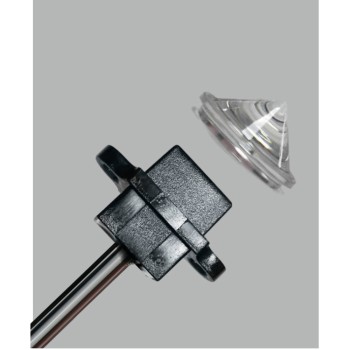

FS-IR1907 Non-contact Liquid Level Detection Sensor

FS-IR1907 Sensor is one of the most advanced sensors for determining the water contact level, which can determine the liquid level without touching the liquid surface from outside the tank body.

The FS-IR1907 sensor has no mechanical moving parts and is highly reliable. Its advantage is the accuracy of liquid level control and it can be installed from any direction. Its waterproof standard is IP64 and the sensor itself also meets RoHS requirements.

The photoelectric liquid level switch uses the principle of light reflection for measurement, the performance of the level sensor is affected when exposed to direct sunlight or other infrared interference.

FS-IR1907 Liquid Level Detection Application:

1. humidifier
2. Medical Equipment
3. Liquid leak warning
4. Electrical appliances
5. coffee machine
6. Electric steam
7. Water purifier
8. Home Appliances
9. Chemical equipment
10. industrial automation
11. electrical water heater
12. Air conditioning equipment

FS-IR1907 Liquid Level Detection Specifications:

1. Switching current: 0.5 amp
2. Insulation resistance: >10
3. Operating temperature: -10 ~ 85 degrees
4. Measurement resolution: 0.1 mm
5. Liquid level measurement accuracy: 1 mm
6. Analog voltage: 1-5V
7. Analog current: 4-20mA
8. Output: analog

Documents:

FS-IR1907 Liquid Level Detection Datasheet
