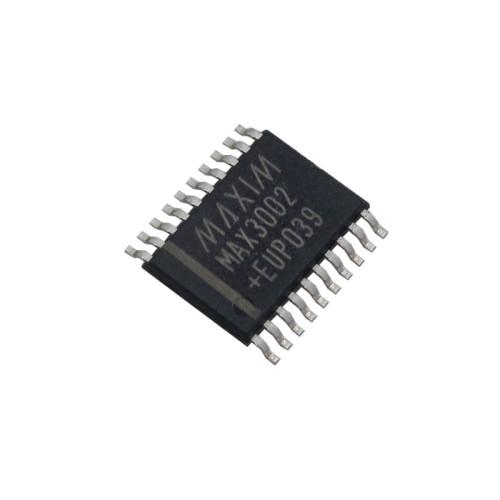

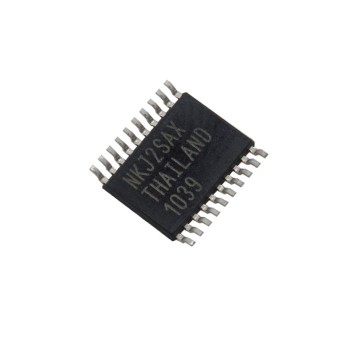

MAX3002 Voltage Level Translator IC

The MAX3002 IC is classified as a voltage level translator and shifter, with its translation based on voltage levels, featuring voltage-based inputs and outputs. The MAX3002 Converter has bidirectional channels, with up to 8 channels in each circuit, each providing one output. Its supply voltage range is from 1.65V to 5.5V. The MAX3002 Voltage Level Translator IC comes in a 20-TSSOP SMD package and operates in a temperature range of -40°C to 85°C. It is commonly used in applications like communication systems, mobile phones, and point-of-sale terminals.

Applications of the MAX3002 Voltage Level Translator IC

1. GPS systems
2. Mobile phones
3. CMOS logic-level translation
4. SPI and MICROWIRE™ level translation
5. Low-voltage ASIC level translation
6. Smart card readers
7. Cellphone cradles
8. Portable POS systems
9. Portable communication devices
10. Low-cost serial interfaces
11. Telecommunications equipment
12. Remote telecommunications equipment

Specifications of the MAX3002 Converter IC

1. Type: Bidirectional converter
2. Input/Output type: Voltage
3. Number of channels: 8
4. Output per channel: 1
5. Data transfer rate: 20 Mbps
6. Propagation delay (maximum): 8.5 ns
7. Supply voltage (maximum): 5.5V
8. Supply voltage (minimum): 1.65V
9. VCC: -0.3V to +6V
10. Operating temperature:Minimum: -40°C Maximum: +85°C
11. Mounting method: Surface mount
12. Package standard: TSSOP-20
13. Ultra-low 0.1µA supply current in shutdown
14. Low quiescent current (< 10µA)
15. Bidirectional level translation
