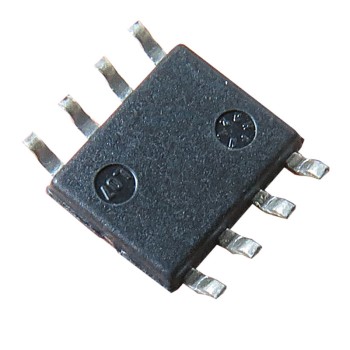

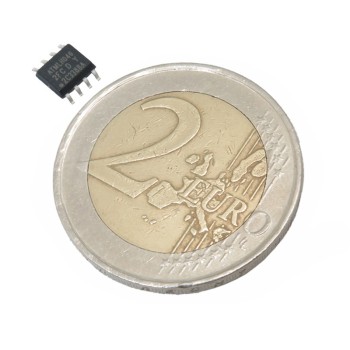

AT24C512 External EEPROM Memory IC 512K SOP8 Package

the at24c512 memory ic is an eeprom type with a flexible capability that allows up to four devices to share a two-wire serial bus, which is essential for operations that have low voltage and power. the capacity of this ic is 512 kilobits, with the voltage of each pin ranging from 1.0 to 7.0 volts, a maximum operating voltage of 6.25 volts, and a dc output current of 5.0 milliamps. additionally, the operating temperature of this component is in the range of -55 to +125 degrees celsius, and the storage temperature is from -65 to +150 degrees celsius.

application of the at24c512 chip:

1. industrial projects
2. encoding systems
3. data storage

specifications of the at24c512 chip:

1. soic package
2. number of pins: 8
3. memory rows: 64k
4. maximum clock frequency: 1 mhz
5. memory size: 512 kb
6. length: 6.2 mm
7. width: 5 mm
8. type: eeprom
9. interface type: 2-wire, serial
10. operating temperature range: -40~85 °c
11. supply voltage range: 5.5~2.5 v

Documents:

datasheet for memory ic model at24c512
